ABB THQB2190 Image 1

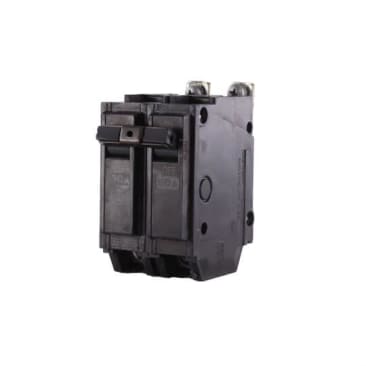

ABB THQB2190 GE 2 POLE BOLT-ON BREAKER

MFR Part #: THQB2190
SKU #: 1239300
Brand: ABB | GE Industrial Solutions
UPC: 783164093056
GE Q-Line® THQB2190 A-Series™ II Type THQB Molded Case Miniature Supplementary Protector, 120/240 VAC, 90 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Thermal Magnetic/Common Trip
Commercial, Residential, Thermal Magnetic, Electrical Distribution and Control Applications
UL File No. E11592 | HACR Rated

GE Q-Line® Supplementary Protector, Type THQB Molded Case Miniature, Series: A-Series™ II, 120/240 VAC, 90 A, 10 kA Interrupt, THQB Frame, LI/Non-Interchangeable Thermal Magnetic/Common Trip, 2 Pole, 1 ph, Load Lug Connection, 6 to 1/0 AWG, 4 to 1/0 AWG Wire, Bolted-On Mounting, 60 to 75 deg C, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Q-Line® Supplementary Protector, Type THQB Molded Case Miniature, Series: A-Series™ II, 120/240 VAC, 90 A, 10 kA Interrupt, THQB Frame, LI/Non-Interchangeable Thermal Magnetic/Common Trip, 2 Pole, 1 ph, Load Lug Connection, 6 to 1/0 AWG, 4 to 1/0 AWG Wire, Bolted-On Mounting, 60 to 75 deg C, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 90 A
Mounting Type: Bolted-On
Number of Poles: 2
Connection Type: Load Lug
Dimensions: 3-9/32 in H x 2 in W x 2-3/8 in D
Frame: THQB
Interrupt Rating: 10 kA
Phase: 1
Series: A-Series™ II
Temperature Rating: 60 to 75 deg C
Trip Type: LI/Non-Interchangeable Thermal Magnetic/Common
Type: Type THQB Molded Case Miniature
Voltage Rating: 120/240 VAC
Wire Size: 6 to 1/0 AWG, 4 to 1/0 AWG

Features

  • Standard continuous current rated
  • EB GO schedule
  • Suitable for reverse feed
  • Internal common trip

Resources

Specification Sheet
