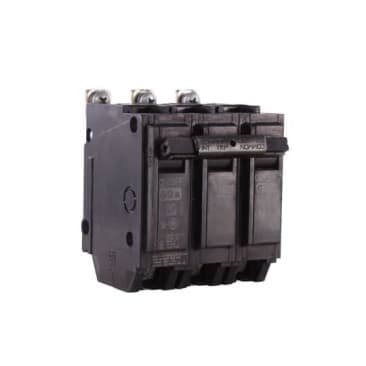

ABB THQB32060 THQB 3 POLE 240V 10K IC 60 AMP

MFR Part #: THQB32060
SKU #: 1235192
Brand: ABB | GE Industrial Solutions
UPC: 783164012446
GE Q-Line® THQB32060 Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
Commercial, Residential, Thermal Magnetic, Electrical Distribution and Control Applications
UL File No. E11592 | HACR Rated

GE Q-Line® Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, THQB Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 3 Pole, 1 ph, 8 to 3 AWG Wire, Bolted-On Mounting, 60 to 75 deg C, 2-3/8 in L x 3 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Product Details

GE Q-Line® Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, THQB Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 3 Pole, 1 ph, 8 to 3 AWG Wire, Bolted-On Mounting, 60 to 75 deg C, 2-3/8 in L x 3 in W x 3-9/32 in H Dimensions

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Attributes

Amperage Rating: 60 A
Mounting Type: Bolted-On
Number of Poles: 3
Dimensions: 2-3/8 in L x 3 in W x 3-9/32 in H
Frame: THQB
Interrupt Rating: 10 kA
Phase: 1
Temperature Rating: 60 to 75 deg C
Trip Type: LI/Non-Interchangeable Thermal Magnetic
Voltage Rating: 120/240 VAC
Wire Size: 8 to 3 AWG

Features

  • Standard continuous current rated
  • Fixed long time and fixed instantaneous trip function
  • 8 to 3 AWG copper aluminum wire range

Resources

Specification Sheet
