ACE APS 400 NEMA 3R 400A 3 WIRE SPLITTER BOX MAINS 4-600MCM
MFR Part #: APS 400
SKU #: 1135497
Brand: ACE
UPC: 400008499781

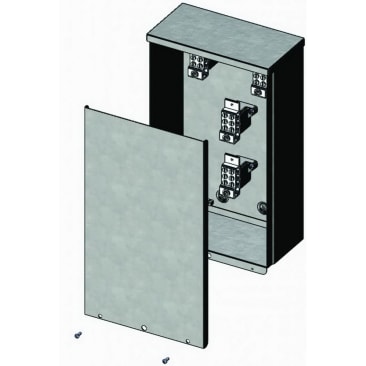

ACE APS 400 Weather-Proof Splitter Box With Padlock, 16 in W, 20 in H, 7 in D, 400 A, 600 V, NEMA 3R, Steel
CSA Certified
Product Details
Attributes
Features
Resources
ACE Weather-Proof Splitter Box, 600 V, 400 A, Screw-On Cover, 4 AWG to 600 kcmil Wire, NEMA 3R, Wall Mount, Steel, Non-Powder-Coated, Gray, 16 in Width, 20 in Height, 7 in D
Amperage Rating:400 A
Color:Gray
Cover Type:Screw-On
Depth:7 in
Finish:Non-Powder-Coated
Height:20 in
Material:Steel
Mounting Type:Wall
NEMA Rating:NEMA 3R
Voltage Rating:600 V
Width:16 in
Wire Size:4 AWG to 600 kcmil
- Screw on lift-off cover comes with padlock provision
- Cu/Al lugs with main and 6x secondary's
- Designed for post or wall mounting
- Rural service box
- Non-powder coated finish
- Ground lug type A
Product Details
ACE Weather-Proof Splitter Box, 600 V, 400 A, Screw-On Cover, 4 AWG to 600 kcmil Wire, NEMA 3R, Wall Mount, Steel, Non-Powder-Coated, Gray, 16 in Width, 20 in Height, 7 in D
Attributes
Amperage Rating: 400 A
Color: Gray
Cover Type: Screw-On
Depth: 7 in
Finish: Non-Powder-Coated
Height: 20 in
Material: Steel
Mounting Type: Wall
NEMA Rating: NEMA 3R
Voltage Rating: 600 V
Width: 16 in
Wire Size: 4 AWG to 600 kcmil
Features
- Screw on lift-off cover comes with padlock provision
- Cu/Al lugs with main and 6x secondary's
- Designed for post or wall mounting
- Rural service box
- Non-powder coated finish
- Ground lug type A
