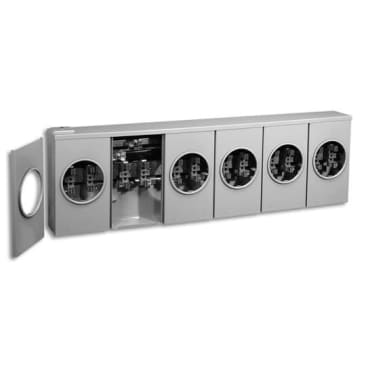

MICRO BE4-VH 4 POSITION 100A RH ENTRY METER SOCKET
MFR Part #: BE4-VH
SKU #: 1159188
Brand: ABB | Microlectric®
UPC: 624871039756
Microlectric® BE4-VH BE2 4-Position Meter Socket, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Screw Rings
For combination overhead/underground service
CSA File No. 27716
Product Details
Attributes
Features
Resources
Microlectric® Meter Socket, 4-Position, Series: BE2, 600 VAC, 200 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, NEMA 3R, 14-5/8 in H x 33-1/8 in W x 5-3/16 in D
Amperage Rating:
200 A
Country Of Origin:
Canada
Dimensions:
14-5/8 in H x 33-1/8 in W x 5-3/16 in D
Enclosure Type:
NEMA 3R
Feed Type:
Overhead/Underground
Number of Jaws:
4
Phase:
1
Series:
BE2
Type:
4-Position
Voltage Rating:
600 VAC
Wire Size:
6 AWG to 250 kcmil
- Supplied with screw type rings
- Right hand entry
- 4-Position
- Weatherproof enclosure
- Factory prebussed from main lugs to each position
- Aluminum tunnel type connectors for both line and load sides
- 6 AWG to 250 kcmil (line)/ 6 to 1/0 AWG (load)
- Horizontal position
- Combination overhead underground supplied with hub opening closure plate for underground service
Product Details
Microlectric® Meter Socket, 4-Position, Series: BE2, 600 VAC, 200 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, NEMA 3R, 14-5/8 in H x 33-1/8 in W x 5-3/16 in D
Attributes
Amperage Rating: 200 A
Country Of Origin: Canada
Dimensions: 14-5/8 in H x 33-1/8 in W x 5-3/16 in D
Enclosure Type: NEMA 3R
Feed Type: Overhead/Underground
Number of Jaws: 4
Phase: 1
Series: BE2
Type: 4-Position
Voltage Rating: 600 VAC
Wire Size: 6 AWG to 250 kcmil
Features
- Supplied with screw type rings
- Right hand entry
- 4-Position
- Weatherproof enclosure
- Factory prebussed from main lugs to each position
- Aluminum tunnel type connectors for both line and load sides
- 6 AWG to 250 kcmil (line)/ 6 to 1/0 AWG (load)
- Horizontal position
- Combination overhead underground supplied with hub opening closure plate for underground service
