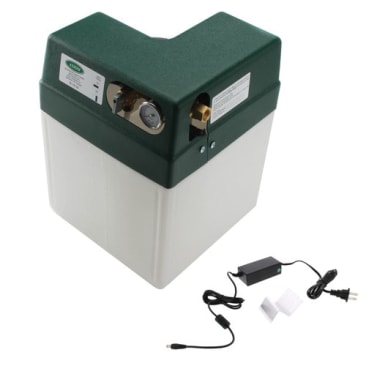

AXIOM MF200 PRESSURE PAL MINI SYSTEM FEEDER WITH 6 GALLON TANK
MFR Part #: MF200
SKU #: 1005981
Brand: Axiom
UPC: 172198
AXIOM MF200 Hydronic Mini System Feeder, 15 lbf/sq-in Cut-Out, FPT Discharge, 6 gal Capacity, 115 VAC
For small boiler/chiller systems, snow/ice melt circuits, outside air heating/cooling glycol coils, solar heating systems
UL Listed
Product Details
Attributes
Features
Resources
AXIOM Hydronic Mini System Feeder, 115 VAC, 60 Hz, 1 ph Phase, 15 lbf/sq-in Cut-Out, FPT Discharge Connection, 6 gal Capacity, Pump Rating: 0.7 gpm, 50 W, 16 in H x 11-3/4 in W
Capacity:
6 gal
Connection Type:
FPT Discharge
Dimensions:
16 in H x 11-3/4 in W
Frequency Rating:
60 Hz
Phase:
1 ph
Power Rating:
50 W
Pressure Rating:
15 lbf/sq-in Cut-Out
Pump Rating:
.7 gpm
Voltage Rating:
115 VAC
- The pressure pal is ideal for feeding and pressurizing closed hydronic systems that do not require cold static fill pressures higher than 25 lbf/sq-in
- It is compatible with both water and glycol/water solutions
- 6 US gal (22.7L) tank for storage and mixing
- Power supply plugs into any standard 115 VAC outlet
- Diaphragm pump can run dry without damage
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated
- Diverter valve allows easy purging of air on initial start-up, and manual agitation of solution
- Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system
- Provides leak detection - dropping fluid level provides immediate notice that the system has developed a leak
- Fluid drained for service can easily be put back into the system
- Fluid level switch shuts the pump off if the storage tank level gets too low
- Power supply adapter with LED power light
- 0.04 L/sec (0.7 gal/min) at free flow, self-priming upto 1.2 m (4 ft) pump performance
- Feeder shall be compatible with glycol solutions of upto 50% concentration
- Pump shall be capable of running dry without damage
- 1/2 in FPT discharge connection
Product Details
AXIOM Hydronic Mini System Feeder, 115 VAC, 60 Hz, 1 ph Phase, 15 lbf/sq-in Cut-Out, FPT Discharge Connection, 6 gal Capacity, Pump Rating: 0.7 gpm, 50 W, 16 in H x 11-3/4 in W
Attributes
Capacity: 6 gal
Connection Type: FPT Discharge
Dimensions: 16 in H x 11-3/4 in W
Frequency Rating: 60 Hz
Phase: 1 ph
Power Rating: 50 W
Pressure Rating: 15 lbf/sq-in Cut-Out
Pump Rating: .7 gpm
Voltage Rating: 115 VAC
Features
- The pressure pal is ideal for feeding and pressurizing closed hydronic systems that do not require cold static fill pressures higher than 25 lbf/sq-in
- It is compatible with both water and glycol/water solutions
- 6 US gal (22.7L) tank for storage and mixing
- Power supply plugs into any standard 115 VAC outlet
- Diaphragm pump can run dry without damage
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated
- Diverter valve allows easy purging of air on initial start-up, and manual agitation of solution
- Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system
- Provides leak detection - dropping fluid level provides immediate notice that the system has developed a leak
- Fluid drained for service can easily be put back into the system
- Fluid level switch shuts the pump off if the storage tank level gets too low
- Power supply adapter with LED power light
- 0.04 L/sec (0.7 gal/min) at free flow, self-priming upto 1.2 m (4 ft) pump performance
- Feeder shall be compatible with glycol solutions of upto 50% concentration
- Pump shall be capable of running dry without damage
- 1/2 in FPT discharge connection
