LITTLE GIANT 550532 1-ABS
MFR Part #: 550532
SKU #: 1153838
Brand: Little Giant®
UPC: 010121135161

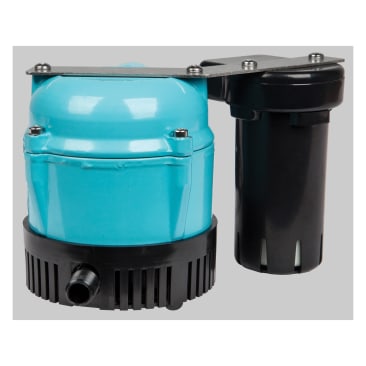

Little Giant® 550532 Shallow-Pan Tank Condensate Removal Pump, 205 gph Flow Rate, 1/4 in MNPT Outlet, 10 ft Shutoff Head, 70 W Power Rating, Import
1 Year
Removable Inlet Filter Screen, 90 deg 1/4 in MNPT Adapter (Suitable for 1/2 in ID Vinyl Tubing), 9 ft Power Cord With Molded Plug, 550522 Tank and 1/150 hp Cast Aluminum Oil-Filled Motor
For removal of condensate from an air conditioner drain pan/reservoir
cCSAus Certified
Product Details
Attributes
Features
Resources
Little Giant® Condensate Removal Pump, Shallow-Pan Tank, 205 gph, 1/4 in MNPT Outlet, 10 ft Shutoff Head, 70 W Power, 230 V 50/60 Hz 0.06/0.05 A Electrical Rating, 4.3 psi Maximum, Nylon Impeller, 11 ft Power Cord, 120 deg F, Cast Aluminum, Epoxy Powder Coated, 6.09 in W x 4.31 in H Dimensions, Import
Country Of Origin:
Mexico
Dimensions:
6.09 in W x 4.31 in H
Electrical Ratings:
230 V 50/60 Hz 0.06/0.05 A
Flow Rate:
205 gph
Outlet Size:
1/4 in MNPT
Type:
Shallow-Pan Tank
Cord Type:
11 ft Power
Domestic/Import:
Import
Finish:
Epoxy Powder Coated
Impeller Type:
Nylon
Material:
Cast Aluminum
Maximum Pressure:
4.3 psi
Power Rating:
70 W
Shutoff Head:
10 ft
Temperature Rating:
120 deg F
- Epoxy-coated cast aluminum housing and motor cover
- Nylon volute
- Stainless steel shaft
- Nitrile shaft seal
- Screened intake
- Advanced mechanical switch
- Thermal overload protection
- 205 gph at 1 ft H
Product Details
Little Giant® Condensate Removal Pump, Shallow-Pan Tank, 205 gph, 1/4 in MNPT Outlet, 10 ft Shutoff Head, 70 W Power, 230 V 50/60 Hz 0.06/0.05 A Electrical Rating, 4.3 psi Maximum, Nylon Impeller, 11 ft Power Cord, 120 deg F, Cast Aluminum, Epoxy Powder Coated, 6.09 in W x 4.31 in H Dimensions, Import
Attributes
Country Of Origin: Mexico
Dimensions: 6.09 in W x 4.31 in H
Electrical Ratings: 230 V 50/60 Hz 0.06/0.05 A
Flow Rate: 205 gph
Outlet Size: 1/4 in MNPT
Type: Shallow-Pan Tank
Cord Type: 11 ft Power
Domestic/Import: Import
Finish: Epoxy Powder Coated
Impeller Type: Nylon
Material: Cast Aluminum
Maximum Pressure: 4.3 psi
Power Rating: 70 W
Shutoff Head: 10 ft
Temperature Rating: 120 deg F
Features
- Epoxy-coated cast aluminum housing and motor cover
- Nylon volute
- Stainless steel shaft
- Nitrile shaft seal
- Screened intake
- Advanced mechanical switch
- Thermal overload protection
- 205 gph at 1 ft H
