LITTLE GIANT 578603 Image 1

LITTLE GIANT 578603 3-MD-MT-HC

MFR Part #: 578603
SKU #: 1154005
Brand: Little Giant®
UPC: 010121786035

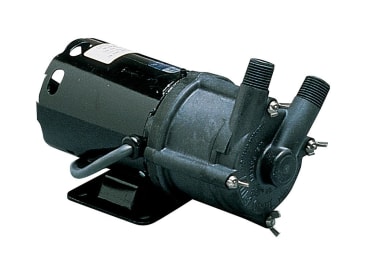

LittleGIANT® 578603 Magnetic Drive Pump, 8.5 gpm Flow Rate, 115 VAC, 200 deg F
1 Year

LittleGIANT®, 578603, Magnetic Drive Pump, 8.5 gpm Flow Rate, 94 W Power, 115 VAC, 1.3 A, 60 Hz Frequency, 7 psi Maximum, 200 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8 in L Dimensions

Product Details

LittleGIANT®, 578603, Magnetic Drive Pump, 8.5 gpm Flow Rate, 94 W Power, 115 VAC, 1.3 A, 60 Hz Frequency, 7 psi Maximum, 200 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8 in L Dimensions

Attributes

Amperage Rating: 1.3 A
Body Material: Ryton
Cord Length: 6 ft
Dimensions: 5 in H x 4 in W x 8 in L
Discharge Size: 1/2 in
Flow Rate: 8.5 gpm
Frequency Rating: 60 Hz
HP Rating: 1/25 hp
Impeller Material: Polyphenylene Sulfide
Material: Plastic/Thermoplastic
Maximum Feet of Head: 16.2 ft
Maximum Pressure: 7 psi
Maximum Temperature: 200 deg F
Model: 3-MD-MT-HC
Phase: 1 ph
Power Rating: 94 W
Speed Rating: 3100 rpm
Suction Size: 1/2 in
Temperature Rating: 200 deg F
Voltage Rating: 115 VAC
Working Pressure: 7 psi

Features

  • 1/25 hp open FC motor
  • Glass-filled polyphenylene sulfide magnet housing and volute
  • 1.1 specific gravity
  • Fluoroelastomer (FKM) O-ring
  • Ceramic thrust washers and shaft
