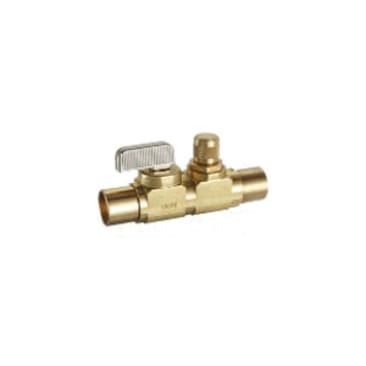

DAHL 121BAL-13-13 Image 1
COO Canada

DAHL 121BAL-13-13 1/2 CXC BALANCING VLV

MFR Part #: 121BAL-13-13
SKU #: 0496259
Brand: dahl
UPC: 773341407479
dahl 121BAL-13-13 Straight Balancing Valve, 1/2 in Nominal, Female Copper Solder, 250 psi, 250 deg F, Brass Body
Limited Lifetime
For heating and cooling systems
cCSAus Certified | NSF/ANSI 61 Certified | UPC Listed

dahl Straight Balancing Valve, 1/2 in Nominal, Female Copper Solder Connection, 250 psi, 3-1/2 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, PTFE Seal, Brass Trim, Zinc Handle, EPDM/FKM Softgoods, Handle Operator, 0 to 3 Cv Flow Coefficient (Cv), 250 deg F, Finish: Rough Brass

Product Details

dahl Straight Balancing Valve, 1/2 in Nominal, Female Copper Solder Connection, 250 psi, 3-1/2 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, PTFE Seal, Brass Trim, Zinc Handle, EPDM/FKM Softgoods, Handle Operator, 0 to 3 Cv Flow Coefficient (Cv), 250 deg F, Finish: Rough Brass

Attributes

Country Of Origin: Canada
Nominal Size: 1/2 in
Body Material: Brass
Finish: Rough Brass
Handle Material: Zinc
Inlet Connection: Fem. Solder
Inlet Size: 1/2 in
Inlet to Outlet Length: 3-1/2 in
Material: Regular Brass
Operation: Plated Handle
Operator Type: Handle
Outlet Connection: Fem. Solder
Outlet Size: 1/2 in
Pattern: Straight
Pressure Rating: 250 psi
Seal Material: PTFE
Softgoods Material: EPDM/FKM
Temperature Rating: 250 deg F
Top to Inlet Center: 1.2 in
Trim Material: Brass

Features

  • Integral metering spindle ensures simple and linear balancing, averaging 10% of max flow per turn
  • Compact size enables closer centers on copper manifolds
  • Instructions for balancing by loop length are shipped with every valve
  • Tamper-resistant safety cap
  • Positive shut-off
