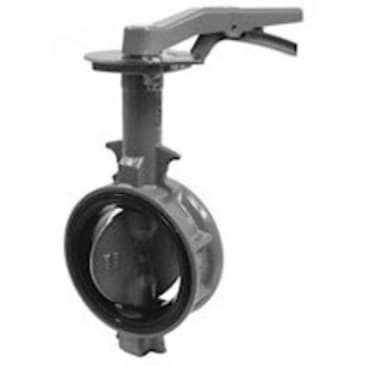

KITZ 5122EL-212 Image 1

KITZ 056-20026 2-1/2 LEVER WAFER BFV W/EPDM 5122EL

MFR Part #: 5122EL-212
SKU #: 1011895
Brand: KITZ
UPC: 400002478201
KITZ 5122EL-212 Wafer Style Bi-Directional Butterfly Valve, 2-1/2 in, Flanged, Ductile Iron, 200 psi
API 609 Category A Standard | MSS SP-67/SP-25

KITZ Wafer Style Bi-Directional Butterfly Valve, 2-1/2 in Nominal, Flanged Connection, 200 psi, 7.83 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Aluminum Bronze Disc, Aluminum Handle, EPDM/NBR Softgoods, Locking Lever Handle Operator, 270 Cv Flow Coefficient (Cv), Material Standard: ASTM A536, ASTM A276, 5 in Dia x 10.78 in L x 1.81 in W, Additional Information: Model 5122EL

Product Details

KITZ Wafer Style Bi-Directional Butterfly Valve, 2-1/2 in Nominal, Flanged Connection, 200 psi, 7.83 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, Stainless Steel Stem, Aluminum Bronze Disc, Aluminum Handle, EPDM/NBR Softgoods, Locking Lever Handle Operator, 270 Cv Flow Coefficient (Cv), Material Standard: ASTM A536, ASTM A276, 5 in Dia x 10.78 in L x 1.81 in W, Additional Information: Model 5122EL

Attributes

Connection Type: Flanged
Nominal Size: 2-1/2 in
Operator Type: Locking Lever Handle
Pressure Rating: 200 psi
Additional Information: Model 5122EL
Body Material: Ductile Iron
Dimensions: 5 in Dia x 10.78 in L x 1.81 in W
Disc Material: Aluminium Bronze
Flow Coefficient (Cv): 270 Cv
Handle Material: Aluminium
Material Standard: ASTM A536, ASTM A276
Seat Material: EPDM
Softgoods Material: EPDM/NBR
Stem Material: Stainless steel
Top to Inlet Center: 7.83 in

Features

  • Molded in seat
  • ISO 5211 mounting pad
