KITZ 053-51200 1/4 IP 150# BRZ GATE VLV 42
MFR Part #: 42T-014
SKU #: 1009096
Brand: KITZ
UPC: 400002212829

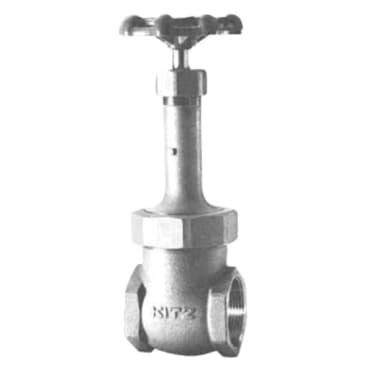

KITZ 42T Series 42T-014 Gate Valve, 1/4 in, FNPT, Bronze, 300 psi
ASME B1.20.1 | MSS-SP-80 Type 2
Product Details
Attributes
Features
Resources
KITZ Gate Valve, 42T Series, 1/4 in Nominal, FNPT Connection, 300 psi, Pressure Class: 150 lb, Gas, Oil, Steam, Water Media, 1.69 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, Bronze Body, Bronze Stem, Bronze Disc, PTFE Packing, Zinc Handle, Handwheel Operator, 6 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, B86
Body Material:
Bronze
Connection Type:
FNPT
Nominal Size:
1/4 in
Pressure Class:
150 lb
Pressure Rating:
300 psi
Disc Material:
Bronze
Flow Coefficient (Cv):
6 Cv
Handle Material:
Zinc
Inlet to Outlet Length:
1.69 in
Material Standard:
ASTM B62, B86
Media:
Gas, Oil, Steam, Water
Operator Type:
Handwheel
Packing Material:
PTFE
Series:
42T Series
Stem Material:
Bronze
Temperature Rating:
406 deg F
Top to Inlet Center:
4-1/4 in
- Inside screw rising stem
- Union bonnet
- Solid wedge disc
Product Details
KITZ Gate Valve, 42T Series, 1/4 in Nominal, FNPT Connection, 300 psi, Pressure Class: 150 lb, Gas, Oil, Steam, Water Media, 1.69 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, Bronze Body, Bronze Stem, Bronze Disc, PTFE Packing, Zinc Handle, Handwheel Operator, 6 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, B86
Attributes
Body Material: Bronze
Connection Type: FNPT
Nominal Size: 1/4 in
Pressure Class: 150 lb
Pressure Rating: 300 psi
Disc Material: Bronze
Flow Coefficient (Cv): 6 Cv
Handle Material: Zinc
Inlet to Outlet Length: 1.69 in
Material Standard: ASTM B62, B86
Media: Gas, Oil, Steam, Water
Operator Type: Handwheel
Packing Material: PTFE
Series: 42T Series
Stem Material: Bronze
Temperature Rating: 406 deg F
Top to Inlet Center: 4-1/4 in
Features
- Inside screw rising stem
- Union bonnet
- Solid wedge disc
