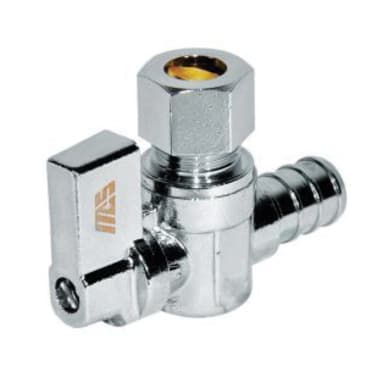

MAS ML-129-1214 1/2 PEX X 1/4OD COMPRESSION ANGLE STOP CHROME
MFR Part #:Â ML-129-1214
SKU #:Â 1258524
Brand: MAS™
UPC:Â 779680704842
MAS™ ML-129 Series ML-129-1214 Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX x Compression, Lever Handle Actuator
For industrial applications
ASME A112.18.1 | CAS B125.1 | cUPC Certified | NSF/ANSI 61 | NSF/ANSI 372 | UPC Certified
Product Details
Attributes
Resources
MAS™ Supply Stop Valve, ML-129 Series, 1/2 x 1/4 in Nominal, 54.5 mm Tube Length, PEX x Compression Connection, 250 psi, Reduced Port, Material Standard: ASTM F1807, Brass/PTFE Trim, EPDM Softgoods, Brass Copper Alloy Body, Zinc Alloy Handle, Lever Handle Actuator, Finish: Chrome-Plated, 250 deg F, Additional Information: 29.1 mm Top to Inlet Center, Lead-Free
Connection Type:
PEX x Compression
Nominal Size:
1/2 x 1/4 in
Pressure Rating:
250 psi
Actuator Type:
Lever Handle
Additional Information:
29.1 mm Top to Inlet Center, Lead-Free
Body Material:
Brass Copper Alloy
Finish:
Chrome-Plated
Handle Material:
Zinc Alloy
Inlet to Outlet Length:
54.5 mm
Lead-Free/Contains Lead:
Lead-Free
Material Standard:
ASTM F1807
Opening Size:
6.4 mm
Port Type:
Reduced
Seal Material:
EPDM
Seat Material:
PTFE
Series:
ML-129 Series
Softgoods Material:
EPDM
Stem Material:
Brass
Temperature Rating:
250 deg F
Top to Inlet Center:
29.1 mm
Trim Material:
Brass/PTFE
Tube Length:
54.5 mm
Product Details
MAS™ Supply Stop Valve, ML-129 Series, 1/2 x 1/4 in Nominal, 54.5 mm Tube Length, PEX x Compression Connection, 250 psi, Reduced Port, Material Standard: ASTM F1807, Brass/PTFE Trim, EPDM Softgoods, Brass Copper Alloy Body, Zinc Alloy Handle, Lever Handle Actuator, Finish: Chrome-Plated, 250 deg F, Additional Information: 29.1 mm Top to Inlet Center, Lead-Free
Attributes
Connection Type:Â PEX x Compression
Nominal Size:Â 1/2 x 1/4 in
Pressure Rating:Â 250 psi
Actuator Type:Â Lever Handle
Additional Information:Â 29.1 mm Top to Inlet Center, Lead-Free
Body Material:Â Brass Copper Alloy
Finish:Â Chrome-Plated
Handle Material:Â Zinc Alloy
Inlet to Outlet Length:Â 54.5 mm
Lead-Free/Contains Lead:Â Lead-Free
Material Standard:Â ASTM F1807
Opening Size:Â 6.4 mm
Port Type:Â Reduced
Seal Material:Â EPDM
Seat Material:Â PTFE
Series:Â ML-129 Series
Softgoods Material:Â EPDM
Stem Material:Â Brass
Temperature Rating:Â 250 deg F
Top to Inlet Center:Â 29.1 mm
Trim Material:Â Brass/PTFE
Tube Length:Â 54.5 mm
