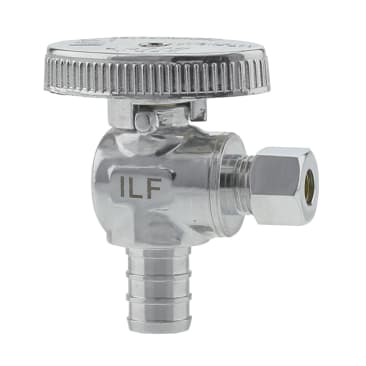

BOSHART 08SVA-05P02CPNL Image 1

BOSHART 08SVA-05P02CPNL 1/2X1/4 PEXXCOMP ANG ICEMAKER VLV

MFR Part #: 08SVA-05P02CPNL
SKU #: 1171745
Brand: Boshart Industries
UPC: 777808402014
Boshart Industries 08SVA-05P02CPNL 08SVANL Series 1/4-Turn Ice Maker Supply Stop Valve, 1/2 x 1/4 in Nominal, PEX x Compression End Style, 125 psi Pressure, Brass Body, Import
ANSI B16.18 | ANSI/ASME B1.20.1 | ASSE 1061 | ASTM D2846/F1960/F1807 | CSA B125.1 | NSF/ANSI 61/372 | SAE J512

Boshart Industries Ice Maker Supply Stop Valve, Lead Free 1/4-Turn, Series: 08SVANL Series, 1/2 x 1/4 in Nominal, PEX x Compression End Style, 125 psi Pressure, Up to 180 deg F, Handle Actuator, Brass Body, Brass/PTFE Trim, EPDM Softgoods, Polished Chrome, 2.02 in H, Import

Supply stops are an excellent low pressure shut-off valve generally found at appliances. They come in different connections and configurations to meet all needs.

Product Details

Boshart Industries Ice Maker Supply Stop Valve, Lead Free 1/4-Turn, Series: 08SVANL Series, 1/2 x 1/4 in Nominal, PEX x Compression End Style, 125 psi Pressure, Up to 180 deg F, Handle Actuator, Brass Body, Brass/PTFE Trim, EPDM Softgoods, Polished Chrome, 2.02 in H, Import

Supply stops are an excellent low pressure shut-off valve generally found at appliances. They come in different connections and configurations to meet all needs.

Attributes

Country Of Origin: China
Nominal Size: 1/2 x 1/4 in
Actuator Type: Handle
Body Material: Brass
Domestic/Import: Import
End Style: PEX x Compression
Finish: Polished Chrome
Pressure Rating: 125 psi
Softgoods Material: EPDM
Temperature Rating: Up to 180 deg F
Trim Material: Brass/PTFE

Features

  • No lead <0.25% pb by weighted average
  • Chrome plated ABS handle
  • Brass stem/PTFE seat
  • EPDM O-ring/stem packing

Resources

Specification Sheet
