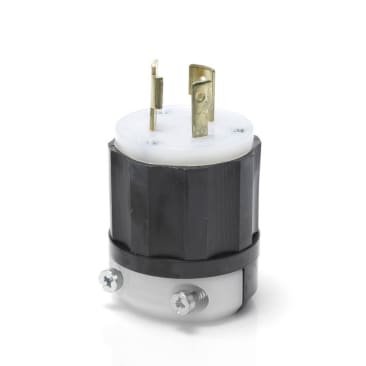

LEVITON 2311 Image 1

LEVITON 2311 20A 125V 2-POLE LOCKING INDUSTRIAL NYLON PLUG EBONY

MFR Part #:Ā 2311
SKU #:Ā 0777275
Brand:Ā LevitonĀ®
UPC:Ā 078477950289
LevitonĀ® 2311 1-Phase Grounding Cable Mount Locking Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Lifetime
Industrial Applications
ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | Federal Specification WC596 | UL94 V-2 Flammability Rating

LevitonĀ®, 2311, Locking Plug, 1-Phase Grounding Cable Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20P NEMA Rating, Industrial Grade, 0.385 to 0.78 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.08 Dia x 2.47 in L Dimensions

LevitonĀ® industry leading locking devices, such as our Black & WhiteĀ® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Product Details

LevitonĀ®, 2311, Locking Plug, 1-Phase Grounding Cable Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20P NEMA Rating, Industrial Grade, 0.385 to 0.78 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.08 Dia x 2.47 in L Dimensions

LevitonĀ® industry leading locking devices, such as our Black & WhiteĀ® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Attributes

Amperage Rating:Ā 20 A
Country Of Origin:Ā US
Voltage Rating:Ā 125 VAC
Color:Ā Black/White
Cord Diameter:Ā 0.385 to 0.78 in
Dimensions:Ā 2.08 Dia x 2.47 in L
Grade:Ā Industrial
Horsepower:Ā 1 hp
Material:Ā Nylon
NEMA Rating:Ā NEMA L5-20P
Number of Poles:Ā 2
Number of Wires:Ā 3
Temperature Rating:Ā -40 to 60 deg C
Terminal Type:Ā Screw
Type:Ā 1-Phase Grounding Cable Mount
