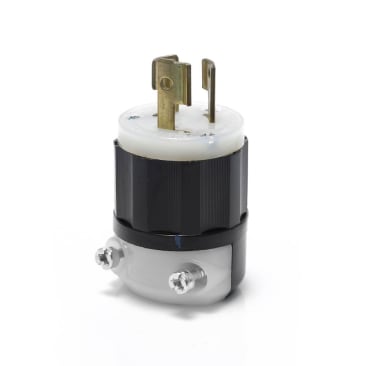

LEVITON 4570-C Image 1

LEVITON 4570-C 15A 250V 2-POLE LOCKING INDUSTRIAL NYLON PLUG EBONY

MFR Part #:Ā 4570-C
SKU #:Ā 0777235
Brand:Ā LevitonĀ®
UPC:Ā 078477950234
LevitonĀ® 4570-C Cable Mount Grounding Locking Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Lifetime
Industrial Applications
ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | Federal Specification WC596 | UL94 V-2 Flammability Rating

LevitonĀ®, 4570-C, Locking Plug, Cable Mount Grounding, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA L6-15P NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 1.98 in H Dimensions

LevitonĀ® industry leading locking devices, such as our Black & WhiteĀ® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Product Details

LevitonĀ®, 4570-C, Locking Plug, Cable Mount Grounding, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA L6-15P NEMA Rating, Industrial Grade, 0.24 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 1.98 in H Dimensions

LevitonĀ® industry leading locking devices, such as our Black & WhiteĀ® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Attributes

Amperage Rating:Ā 15 A
Country Of Origin:Ā US
Voltage Rating:Ā 250 VAC
Color:Ā Black/White
Cord Diameter:Ā 0.24 to 0.7 in
Dimensions:Ā 1.53 in Dia x 1.98 in H
Grade:Ā Industrial
Horsepower:Ā 1-1/2 hp
Material:Ā Nylon
NEMA Rating:Ā NEMA L6-15P
Number of Poles:Ā 2
Number of Wires:Ā 3
Temperature Rating:Ā -40 to 60 deg C
Terminal Type:Ā Screw
Type:Ā Cable Mount Grounding

Features

  • Certified for current interrupting at full rated current
