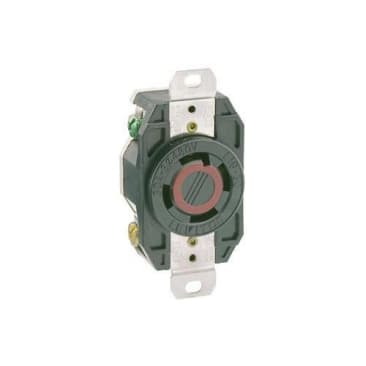

LEVITON 2730 Image 1

LEVITON 2730 30A 480V 3PH 3-POLE 4-WIRE LOCKING INDUSTRIAL SINGLE RECEPTACLE EBONY

MFR Part #: 2730
SKU #: 0777540
Brand: Leviton®
UPC: 078477809655
Leviton® 2730 3-Phase Y Grounding Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Black
Commercial Applications
NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 | Federal Specification WC596/E13399 | UL 498 | UL94 V-0/V-2 Flammability Rating

Leviton®, 2730, Locking Receptacle, 3-Phase Y Grounding, 480 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, NEMA L16-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Product Details

Leviton®, 2730, Locking Receptacle, 3-Phase Y Grounding, 480 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, NEMA L16-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Attributes

Amperage Rating: 30 A
Country Of Origin: Mexico
Voltage Rating: 480 VAC
Color: Black
Dimensions: 3.63 in H x 1.69 in W x 1.31 in D
Grade: Industrial
Horsepower: 10 hp
Material: Polybutylene Terephthalate
NEMA Rating: NEMA L16-30R
Number of Poles: 3
Number of Wires: 4
Temperature Rating: -40 to 60 deg C
Terminal Type: Back/Side Wire
Type: 3-Phase Y Grounding

Features

  • Box mounting
  • 14 to 8 AWG terminal accommodation
  • Flush mount

Resources

Instruction/Installation Manual
RoHS
