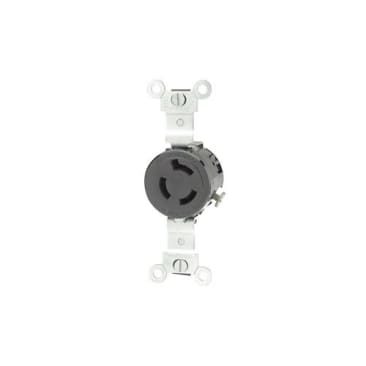

LEVITON 4560 Image 1

LEVITON 4560 15A 250V 2-POLE 3-WIRE LOCKING INDUSTRIAL SINGLE RECEPTACLE EBONY

MFR Part #: 4560
SKU #: 0777250
Brand: Leviton®
UPC: 078477797020
Leviton® 4560 Grounding Single Locking Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Black
Commercial Applications
NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42/LR406 | Federal Specification WC596/E13399 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Leviton®, 4560, Locking Receptacle, Grounding Single, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA L6-15R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon, Black, 46 in H Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Product Details

Leviton®, 4560, Locking Receptacle, Grounding Single, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA L6-15R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon, Black, 46 in H Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Attributes

Amperage Rating: 15 A
Country Of Origin: Mexico
Voltage Rating: 250 VAC
Color: Black
Dimensions: 46 in H
Grade: Industrial
Horsepower: 1-1/2 hp
Material: Nylon
NEMA Rating: NEMA L6-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Side Wire
Type: Grounding Single

Features

  • Box mounting
  • 18 to 10 AWG terminal accommodation

Resources

Instruction/Installation Manual
