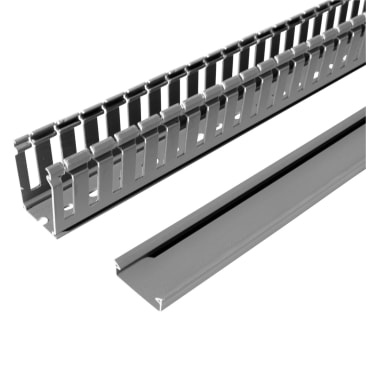

ABB 05098 8/12 SLOT WIRING DUCT 100 X 100
MFR Part #: 05098
SKU #: 1037677
Brand: ABB | Ty-Duct®
UPC: 888614189324
ABB 05098 Finger Wiring Duct, 8 mm W x 12 mm H Wide Slot, 3.94 in W x 3.94 in D, Thermoplastic
05310 Cover
Industrial Applications
CSA Certified | IMQ Mark EN 50085-2-3 | RINA Certified
Product Details
Attributes
Features
Resources
ABB Wiring Duct, Finger, 3.94 in Width, 3.94 in Depth, 6.56 ft Length, Wide Slot, 8 mm W x 12 mm H Slot, Adhesive Backed: No, Thermoplastic, Gray
Color:
Gray
Country Of Origin:
ITALY
Depth:
3.94 in
Length:
6.56 ft
Material:
Thermoplastic
Slot Size:
8 mm W x 12 mm H
Slot Type:
Wide
Type:
Finger
Width:
3.94 in
Adhesive Backed:
No
- Color RAL 7030 gray
- Plastic, insulating, shock-proof, self-extinguishing material in compliance with UL 94 V0 standard and resistant to abnormal heat and fire up to 960 deg C (glow wire test) in compliance with IEC 695-2-1 standard
- 5 deg C minimum storage/transport temperature
- Minimum installation and usage temperature: -15 deg C
- 60 deg C maximum usage temperature
- Resistant to acids, oils, and greases
- No burr, rounded-off inner edges
- New rib profile makes it easy to open and close the cover and guarantees that it clips on more safely
- Designed to snap onto the fix-o-rapid special accessory, suitable to be fastened both to din rail and base plate
- The ribs are cut using a special pressing process (rounding of the edges) producing wiring ducts completely free of burr and rough edges
- The dimensions and resilience of the ribs ensure repeated splaying during cabling
- Controlled splaying of sides to ensure a perfect seal of the cover in the vertical sections and at high temperatures
- Double trimming line, one at the base of the ribs so that they can be removed by bending them outwards and one at the base of the lateral sides so that the edge can be cut when two wiring ducts are branched
- Cable holder moldings half-way up the straight section of the ribs in 80 and 100 mm H wiring ducts
- Cover can be opened without having to use a special tool
- Can be mounted on horizontal or vertical surfaces even when the cover is on the bottom
- Trunking compliant with the new European standard EN 50085-2-3
- Lead-free
Product Details
ABB Wiring Duct, Finger, 3.94 in Width, 3.94 in Depth, 6.56 ft Length, Wide Slot, 8 mm W x 12 mm H Slot, Adhesive Backed: No, Thermoplastic, Gray
Attributes
Color: Gray
Country Of Origin: ITALY
Depth: 3.94 in
Length: 6.56 ft
Material: Thermoplastic
Slot Size: 8 mm W x 12 mm H
Slot Type: Wide
Type: Finger
Width: 3.94 in
Adhesive Backed: No
Features
- Color RAL 7030 gray
- Plastic, insulating, shock-proof, self-extinguishing material in compliance with UL 94 V0 standard and resistant to abnormal heat and fire up to 960 deg C (glow wire test) in compliance with IEC 695-2-1 standard
- 5 deg C minimum storage/transport temperature
- Minimum installation and usage temperature: -15 deg C
- 60 deg C maximum usage temperature
- Resistant to acids, oils, and greases
- No burr, rounded-off inner edges
- New rib profile makes it easy to open and close the cover and guarantees that it clips on more safely
- Designed to snap onto the fix-o-rapid special accessory, suitable to be fastened both to din rail and base plate
- The ribs are cut using a special pressing process (rounding of the edges) producing wiring ducts completely free of burr and rough edges
- The dimensions and resilience of the ribs ensure repeated splaying during cabling
- Controlled splaying of sides to ensure a perfect seal of the cover in the vertical sections and at high temperatures
- Double trimming line, one at the base of the ribs so that they can be removed by bending them outwards and one at the base of the lateral sides so that the edge can be cut when two wiring ducts are branched
- Cable holder moldings half-way up the straight section of the ribs in 80 and 100 mm H wiring ducts
- Cover can be opened without having to use a special tool
- Can be mounted on horizontal or vertical surfaces even when the cover is on the bottom
- Trunking compliant with the new European standard EN 50085-2-3
- Lead-free
