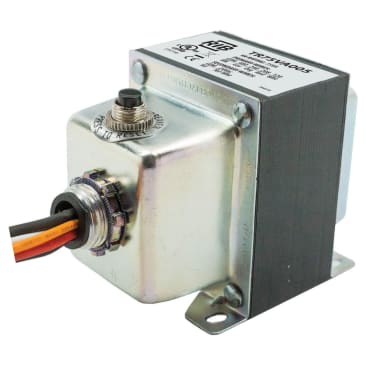

FUNCTIONAL DEVICES TR75VA005 Image 1

FUNCTIONAL DEVICES TR75VA005 480/240/208/120 TO 24VAC TRANSFORMER WITH CIRCUIT BREAKER

MFR Part #: TR75VA005
SKU #: 1302205
Brand: Functional Devices™
UPC: 094236007650
Functional Devices™ TR75VA005 Transformer, 120/208/240/480 V Primary, 24 V Secondary, 50/60 Hz
CE Certified|cULus Listed|RoHS Compliant

Functional Devices™ Transformer, 120/208/240/480 V Primary, Secondary Voltage: 24 V, VA Rating: 75 VA, 50/60 Hz, Foot, Hub Mounting, -30 to 140 deg F, 3.88 in L x 2.515 in W x 3.03 in H, Additional Information: Split-Bobbin Construction, 100000 hr MTBF, 9-1/2 in L Wire

The TR75VA005 Transformer is designed for effective voltage conversion across multiple input ranges. It's one of Functional Devices' more capable transformers, able to meet more demanding power needs. However, it also maintains the compact design and installation flexibility that our products are known for.

Product Details

Functional Devices™ Transformer, 120/208/240/480 V Primary, Secondary Voltage: 24 V, VA Rating: 75 VA, 50/60 Hz, Foot, Hub Mounting, -30 to 140 deg F, 3.88 in L x 2.515 in W x 3.03 in H, Additional Information: Split-Bobbin Construction, 100000 hr MTBF, 9-1/2 in L Wire

The TR75VA005 Transformer is designed for effective voltage conversion across multiple input ranges. It's one of Functional Devices' more capable transformers, able to meet more demanding power needs. However, it also maintains the compact design and installation flexibility that our products are known for.

Attributes

Dimensions: 3.88 in L x 2.515 in W x 3.03 in H
Frequency Rating: 50/60 Hz
Mounting Type: Foot, Hub
Primary Voltage: 120/208/240/480 V
Secondary Voltage: 24 V
Temperature Rating: -30 to 140 deg F
VA Rating: 75 VA
Additional Information: Split-Bobbin Construction, 100000 hr MTBF, 9-1/2 in L Wire

Features

  • 75 VA Capacity: Suits a range of conversion needs
  • 480/240/208/120 to 24 VAC Conversion: Adaptable to different input voltages
  • Circuit Breaker: Adds a layer of redundancy and safety in an overload solution
  • Foot and Single Threaded Hub Mount: Offers installation flexibility
  • Reliable Performance: Ensures consistent operation

Resources

Specification Sheet
