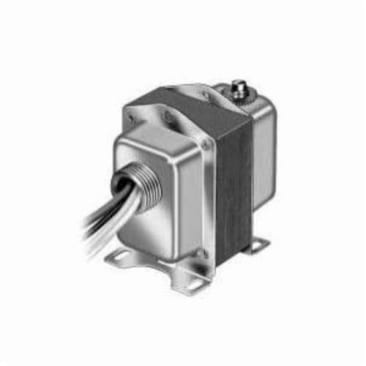

HONEYWELL AT175A1008 Image 1

HONEYWELL AT175A1008/U 75VA/24V TRANSFORMER

MFR Part #: AT175A1008
SKU #: 0484454
Brand: Honeywell
UPC: 085267035507
Honeywell AT175A1008 General Purpose Transformer, 120/208/240 VAC Primary, 27.5 VAC Secondary, 0.075 kVA Power Rating, 60 Hz
Metal End Bell
Used With Power 24 VAC Circuits, Typically Used In Heating/Cooling Control Systems
UL Listed | CSA Certifield

Honeywell General Purpose Transformer, 120/208/240 VAC Primary, 27.5 VAC Secondary, 0.075 kVA Power, 60 Hz Frequency, Wire Lead Connection, Footed Mounting, NEMA E Enclosure, -20 to 105 deg F, 3-3/16 in H x 2-3/8 in W x 3-5/8 in D Dimensions

Honeywell offers NEMA - standard DC20-1992 and general purpose transformers. These transformers are available with single or multiple input voltages and with foot, conduit and plate mounting options. Transformers with circuit breakers that can be manually reset by pressing a button are also available. Honeywell also designs transformers for specific environmental requirements and with specialized termination options.

Product Details

Honeywell General Purpose Transformer, 120/208/240 VAC Primary, 27.5 VAC Secondary, 0.075 kVA Power, 60 Hz Frequency, Wire Lead Connection, Footed Mounting, NEMA E Enclosure, -20 to 105 deg F, 3-3/16 in H x 2-3/8 in W x 3-5/8 in D Dimensions

Honeywell offers NEMA - standard DC20-1992 and general purpose transformers. These transformers are available with single or multiple input voltages and with foot, conduit and plate mounting options. Transformers with circuit breakers that can be manually reset by pressing a button are also available. Honeywell also designs transformers for specific environmental requirements and with specialized termination options.

Attributes

Connection Type: Wire Lead
Country Of Origin: China
Dimensions: 3-3/16 in H x 2-3/8 in W x 3-5/8 in D
Enclosure Type: NEMA E
Frequency Rating: 60 Hz
Mounting Type: Footed
Power Rating: .075 kVA
Primary Voltage: 120/208/240 VAC
Secondary Voltage: 27.5 VAC
Temperature Rating: -20 to 105 deg F

Features

  • Provides color-coded lead wires for primary connections and screw terminals for secondary connections
  • Includes fixed 1/4 in male quick-connects or color-coded lead wires for primary and secondary connections
  • Override protection provided
  • Color-coded lead wires for primary connections
  • Plate mounted on 2 x 4 in or 4 x 4 in outlet box, clamp mounted using outlet box knockout or panel mounted
  • Connection primary 9 in lead wires, secondary (2) screw terminals
