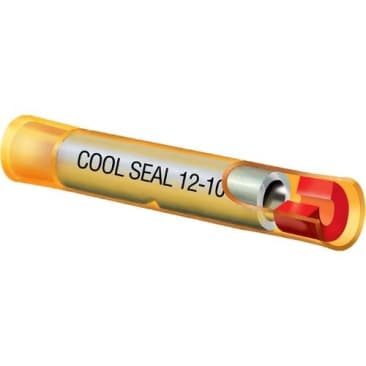

ILSCO CSBS-10-P25 COOL SEAL BUTT SPLICE 12-10
MFR Part #: CSBS-10-P25
SKU #: 1136003
Brand: ILSCO®
UPC: 783669203417
ILSCO® Cool Seal® CSBS-10-P25 Insulated Sealed Butt Splice, 12 to 10 AWG Conductor, 1-1/2 in L, Seamless Barrel, Copper Alloy, Yellow
UL 486C/453G/File No. E6207 | PROP65:cancer and reproductive harm - www.P65Warnings.ca.gov
Product Details
Attributes
Features
Resources
ILSCO® Cool Seal® Butt Splice, Insulated Sealed, Copper Conductor, 12 to 10 AWG Conductor, 1-1/2 in Length, Seamless Barrel, 600 V AC, 105 deg C, Copper Alloy, Yellow
Barrel Type:Seamless
Color:Yellow
Conductor Size:12 to 10 AWG
Conductor Type:Copper
Country Of Origin:US
Length:1-1/2 in
Material:Copper Alloy
Temperature Rating:105 deg C
Type:Insulated Sealed
Voltage Rating:600 V AC
- Uses an innovative anaerobic encapsulated sealant that is heatless and solderless
- Locks out moisture and air
- Nylon insulation
- Provides fast, easy wire insertion in limited space applications, simply strip and crimp
- Environmentally sealed connection which can be installed in a fraction of the time
- Provide easy wire range identification
- Environmentally sealed connection without use of heat
- Provides maximum conductivity
- Maximum crimp connection to prevent wire pull out
- Increased puncture, heat and chemical resistant qualities for more demanding applications
- Ensures reliability for copper conductor
- Color coded
Product Details
ILSCO® Cool Seal® Butt Splice, Insulated Sealed, Copper Conductor, 12 to 10 AWG Conductor, 1-1/2 in Length, Seamless Barrel, 600 V AC, 105 deg C, Copper Alloy, Yellow
Attributes
Barrel Type: Seamless
Color: Yellow
Conductor Size: 12 to 10 AWG
Conductor Type: Copper
Country Of Origin: US
Length: 1-1/2 in
Material: Copper Alloy
Temperature Rating: 105 deg C
Type: Insulated Sealed
Voltage Rating: 600 V AC
Features
- Uses an innovative anaerobic encapsulated sealant that is heatless and solderless
- Locks out moisture and air
- Nylon insulation
- Provides fast, easy wire insertion in limited space applications, simply strip and crimp
- Environmentally sealed connection which can be installed in a fraction of the time
- Provide easy wire range identification
- Environmentally sealed connection without use of heat
- Provides maximum conductivity
- Maximum crimp connection to prevent wire pull out
- Increased puncture, heat and chemical resistant qualities for more demanding applications
- Ensures reliability for copper conductor
- Color coded
