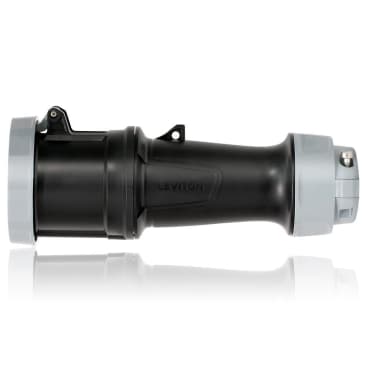

LEVITON 460C5WLEV 60A PIN & SLEEVE CONNECTOR BLACK
MFR Part #: 460C5WLEV
SKU #: 1263586
Brand: Leviton®
UPC: 078477901540
Leviton® 460C5WLEV LEV Series 3-Phase Dustight North American Rated Watertight Pin and Sleeve Connector, 600 VAC, 60 A, 3 Poles, 4 Wires, Black
5 years Limited
Washdown/Outdoor, Food and Beverages Applications
CE Certified | CSA C22.2 File No. 182.1-13 | IEC 60309-1 | IEC 60309-2 | NOM ANCE Certified | NSF 14159-1 | UL 1682 | UL 1686 C2 | UL 94 V-0 Flammability Rating
Product Details
Attributes
Features
Resources
Leviton® Pin and Sleeve Connector, 3-Phase Dustight North American Rated Watertight, Series: LEV Series, 600 VAC, 60 A, 20 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, Hex Socket Screw Terminal, Nylon, Black, 11.01 in L x 4.1 in W Dimensions
Amperage Rating:
60 A
Country Of Origin:
Mexico
Voltage Rating:
600 VAC
Color:
Black
Dimensions:
11.01 in L x 4.1 in W
Enclosure:
IP66/IP67/IP68/IP69K
Grade:
Industrial
Horsepower:
20 hp
Material:
Nylon
NEMA Rating:
NEMA 3R/4X/6P/12
Number of Poles:
3
Number of Wires:
4
Series:
LEV Series
Terminal Type:
Hex Socket Screw
Type:
3-Phase Dustight North American Rated Watertight
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and outlast the competition
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
Product Details
Leviton® Pin and Sleeve Connector, 3-Phase Dustight North American Rated Watertight, Series: LEV Series, 600 VAC, 60 A, 20 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, Hex Socket Screw Terminal, Nylon, Black, 11.01 in L x 4.1 in W Dimensions
Attributes
Amperage Rating: 60 A
Country Of Origin: Mexico
Voltage Rating: 600 VAC
Color: Black
Dimensions: 11.01 in L x 4.1 in W
Enclosure: IP66/IP67/IP68/IP69K
Grade: Industrial
Horsepower: 20 hp
Material: Nylon
NEMA Rating: NEMA 3R/4X/6P/12
Number of Poles: 3
Number of Wires: 4
Series: LEV Series
Terminal Type: Hex Socket Screw
Type: 3-Phase Dustight North American Rated Watertight
Features
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and outlast the competition
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
