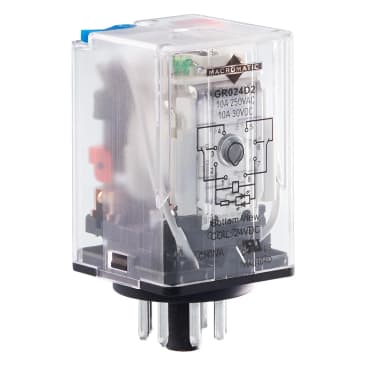

MACROMATIC GR024D2 ROUND 10A LED 2 FORM C 24V CONTROL RELAY
Product Details
Attributes
Features
Resources
MACROMATIC GR024D2 General Purpose Blade Style Relay, GR Series, 2 poles, 8 pins, 12 A at 250V AC/30V DC, 3000 VA/360 W Contact Rating, Mechanical Life of 20000000 operations, Operating Temp of -40 to 70 deg C, 24 VDC Control Voltage, DC: 1.1 W, AC: 1.5 VA Load, 12 A, 250 V Max
Compact GR Series General Purpose Relays are used for applications requiring an economical solution. These Octal (Round) eight-terminal relays provide indication of power status, push-to-test and 2 Form C output contacts. Available sockets can be either DIN-rail or screw-mounted.
Macromatic GR Series General Purpose Relays provide high reliability and durability for applications requiring an economical solution. These “cube style” relays are configured with Octal (Round) Style terminals and are rated for 10,000,000 mechanical operations. Even though compact in size, these relays provide up to 10 Amp contacts at various AC and DC coil voltage ratings. Sockets for GR Series relays can be DIN-rail or screw-mounted.
- High Capacity 10 Amp rated
- LED power status indicator
- Standard Push-to-test buttons (option to omit)
- Buttons are color coded – orange for AC and blue for DC voltage
- Buttons can be locked in place for testing
- Transparent dust cover
- RoHS compliant
Product Details
MACROMATIC GR024D2 General Purpose Blade Style Relay, GR Series, 2 poles, 8 pins, 12 A at 250V AC/30V DC, 3000 VA/360 W Contact Rating, Mechanical Life of 20000000 operations, Operating Temp of -40 to 70 deg C, 24 VDC Control Voltage, DC: 1.1 W, AC: 1.5 VA Load, 12 A, 250 V Max
Compact GR Series General Purpose Relays are used for applications requiring an economical solution. These Octal (Round) eight-terminal relays provide indication of power status, push-to-test and 2 Form C output contacts. Available sockets can be either DIN-rail or screw-mounted.
Macromatic GR Series General Purpose Relays provide high reliability and durability for applications requiring an economical solution. These “cube style” relays are configured with Octal (Round) Style terminals and are rated for 10,000,000 mechanical operations. Even though compact in size, these relays provide up to 10 Amp contacts at various AC and DC coil voltage ratings. Sockets for GR Series relays can be DIN-rail or screw-mounted.
Attributes
Features
- High Capacity 10 Amp rated
- LED power status indicator
- Standard Push-to-test buttons (option to omit)
- Buttons are color coded – orange for AC and blue for DC voltage
- Buttons can be locked in place for testing
- Transparent dust cover
- RoHS compliant
