MAS 013-31511 3/8 IP BALL VLV B-3

Name: MAS 013-31511 3/8 IP BALL VLV B-3
Brand: MAS™
SKU: 0548361
Availability: OutOfStock

MFR Part #: B-3-3/8

SKU #: 0548361

Brand: MAS™

UPC: 620790340133

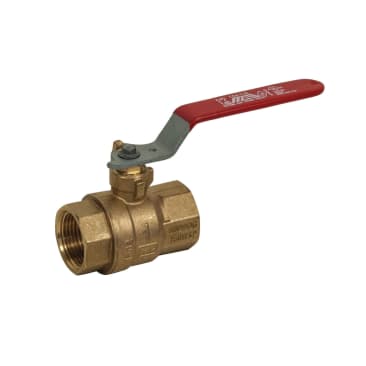

Please note this item is discontinued (order fulfillment will depend on stock availability): MAS™ B Series B-3-3/8 Ball Valve, 3/8 in, FNPT, Brass, 600 psi

3 Year Limited

ANSI Z21.15/B1.20.1 | ASME B16.44/B16.33/CGA-CR91-002/3.16 | CSA 9.1 | cULus Listed | FM Approved

Product Details
Attributes
Features
Resources

MAS™ Ball Valve, B Series, 3/8 in Nominal, FNPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 1.73 in Inlet to Outlet Length, 1.54 in Top to Inlet Center, 0.39 in Opening, Lever Handle Operator, 8 Cv Flow Coefficient (Cv), Material Standard: ASTM A36, ASTM B124 C37700, ASTM B283 C37700, Brass Body, PTFE Seat, Brass Stem, PTFE Packing, Steel Handle, Brass Ball, Contains Lead, -40 to 120 deg F

Product Details

MAS™ Ball Valve, B Series, 3/8 in Nominal, FNPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 1.73 in Inlet to Outlet Length, 1.54 in Top to Inlet Center, 0.39 in Opening, Lever Handle Operator, 8 Cv Flow Coefficient (Cv), Material Standard: ASTM A36, ASTM B124 C37700, ASTM B283 C37700, Brass Body, PTFE Seat, Brass Stem, PTFE Packing, Steel Handle, Brass Ball, Contains Lead, -40 to 120 deg F

Attributes

Connection Type: FNPT

Inlet to Outlet Length: 1.73 in

Nominal Size: 3/8 in

Operator Type: Lever Handle

Pressure Rating: 600 psi

Ball Material: Brass

Body Material: Brass

Flow Coefficient (Cv): 8 Cv

Handle Material: Steel

Lead-Free/Contains Lead: Contains Lead

Material Standard: ASTM A36, ASTM B124 C37700, ASTM B283 C37700

Media: Gas, Oil, Steam, Water

Opening Size: .39 in

Packing Material: PTFE

Port Type: Full

Seat Material: PTFE

Series: B Series

Stem Material: Brass

Temperature Rating: -40 to 120 deg F

Top to Inlet Center: 1.54 in

Features

Blowout-proof stem design
Adjustable packing gland

Resources

Specification Sheet
