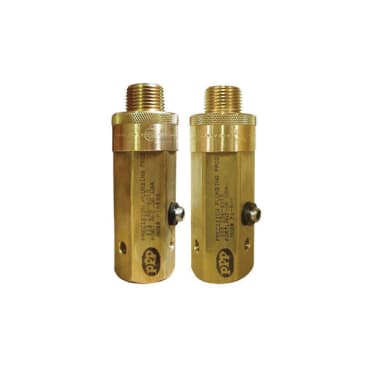

PRECISION P1-500 1/2 PPP ADJ AUTO TRAP PRIMER VALVE
MFR Part #: P1-500
SKU #: 1013620
Brand: PPP®
UPC: 671411200015
PPP® P1-500 Trap Primer Valve, FNPT x MNPT Connection, Domestic
ISO 9001/ISO 14001 Certified, UPC Listed | PROP65: Cancer and Reproductive harm www.p65warnings.ca.gov.
Product Details
Attributes
Features
Resources
PPP® Trap Primer Valve, FNPT x MNPT, 1-1/8 in W x 4-3/8 in H, Domestic
The Model P-1 Trap Primer Valve is a precision device designed to deliver potable water to floor drains.
Connection:FNPT x MNPT
Country Of Origin:US
Pipe Size:1/2 in
Domestic/Import:Domestic
- A pressure drop of 10 psig is required to activate the priming valve
- The valves operating range is 20 to 80 psig
- Adjustable to line pressure
- Piston operated, contains no springs or diaphragms
- Easily adjusted to high or low pressures
- Constructed of 360 brass, EPDM E70 O-rings, Dow Silicone, stainless steel mesh screen, stainless steel adjustment screw
- Model P-1 will prime 1 to 4 floor drains using the PPP Patented distribution system
Product Details
PPP® Trap Primer Valve, FNPT x MNPT, 1-1/8 in W x 4-3/8 in H, Domestic
The Model P-1 Trap Primer Valve is a precision device designed to deliver potable water to floor drains.
Attributes
Connection: FNPT x MNPT
Country Of Origin: US
Pipe Size: 1/2 in
Domestic/Import: Domestic
Features
- A pressure drop of 10 psig is required to activate the priming valve
- The valves operating range is 20 to 80 psig
- Adjustable to line pressure
- Piston operated, contains no springs or diaphragms
- Easily adjusted to high or low pressures
- Constructed of 360 brass, EPDM E70 O-rings, Dow Silicone, stainless steel mesh screen, stainless steel adjustment screw
- Model P-1 will prime 1 to 4 floor drains using the PPP Patented distribution system
