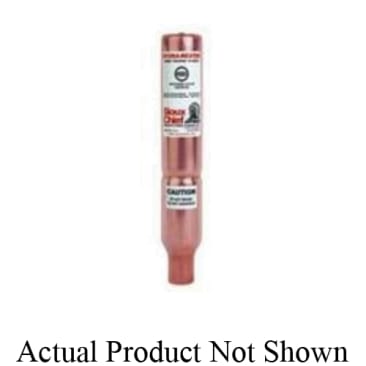

SIOUX CHIEF 652-AS Image 1

SIOUX CHIEF 652-AS 1/2 SWT SHOCK STOP

MFR Part #: 652-AS
SKU #: 0241651
Brand: Sioux Chief
UPC: 739236107022
Sioux Chief HydraRester™ 652-AS 650 Water Hammer Arrester, 1/2 in, Male C x Press Fitting, 350 psig, 1 to 11 Fixture Unit Capacity, Domestic
ANSI/ASSE 1010 2004|FDA Approved

Sioux Chief HydraRester™ Water Hammer Arrester, Series: 650, 1/2 in Nominal, Male C x Press Fitting, 350 psig, 1 to 11 Fixture Unit Capacity, 250 deg F, Copper Body, EPDM O-Ring, 8-1/4 in L x 1-3/8 in W, Domestic

Sioux Chief 650 Series piston-type water hammer arresters shall be required in piping systems. Water hammer arresters shall have sufficient volume of air to dissipate the calculated kinetic energy generated in the piping system. Arresters shall be effective when installed at any angle. Arresters shall be approved for installation with no access panel required. Water hammer arresters shall be ANSI/ASSE 1010 2004 certified. Arresters shall be sized and placed per manufacturer's instructions.

Product Details

Sioux Chief HydraRester™ Water Hammer Arrester, Series: 650, 1/2 in Nominal, Male C x Press Fitting, 350 psig, 1 to 11 Fixture Unit Capacity, 250 deg F, Copper Body, EPDM O-Ring, 8-1/4 in L x 1-3/8 in W, Domestic

Sioux Chief 650 Series piston-type water hammer arresters shall be required in piping systems. Water hammer arresters shall have sufficient volume of air to dissipate the calculated kinetic energy generated in the piping system. Arresters shall be effective when installed at any angle. Arresters shall be approved for installation with no access panel required. Water hammer arresters shall be ANSI/ASSE 1010 2004 certified. Arresters shall be sized and placed per manufacturer's instructions.

Attributes

Connection Type: Male C x Press Fitting
Country Of Origin: US
Fixture Unit Capacity: 1 to 11
Nominal Size: 1/2 in
Body Material: Copper
Dimensions: 8-1/4 in L x 1-3/8 in W
Domestic/Import: Domestic
Pressure Rating: 350 psig
Series: 650
Softgoods Material: EPDM O-Ring
Temperature Rating: 250 deg F

Features

  • Do not overheat, do not braze
  • Lifetime cycle tested at US testing laboratories to withstand 10,000 shock cycles
  • HydraRester male sweat fittings are compatible with press-fitting systems, such as Viega ProPress and all push-fitting systems
  • Allows for installation in 2 x 4 wall cavity
  • Installs at any angle

Resources

Instruction/Installation Manual
Specification Sheet
