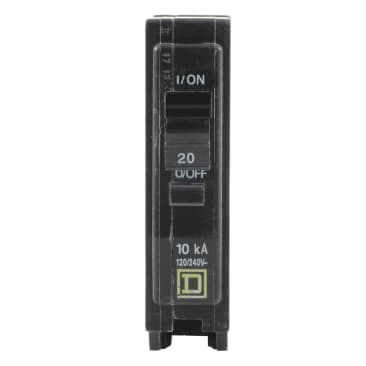

SQUARE D QO120 PUSH-IN 1 POLE 20 AMP BREAKER
Product Details
Attributes
Features
Resources
Square D™, QO120, 1-Pole Miniature Circuit Breaker, Standard, 120/240 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 3 in H x 0.75 in W x 2.91 in D Dimensions
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication
- The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels
- 14 - 8 AWG copper/aluminum
- Standard
Product Details
Square D™, QO120, 1-Pole Miniature Circuit Breaker, Standard, 120/240 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 3 in H x 0.75 in W x 2.91 in D Dimensions
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Attributes
Features
- QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication
- The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels
- 14 - 8 AWG copper/aluminum
- Standard
