WATTS 0241150 Image 1

WATTS D9000116 1X36 GAS CONNECTOR CAN16100BP36

MFR Part #: 0241150
SKU #: 1040800
Brand: WATTS® | Dormont®
UPC: 662447000793

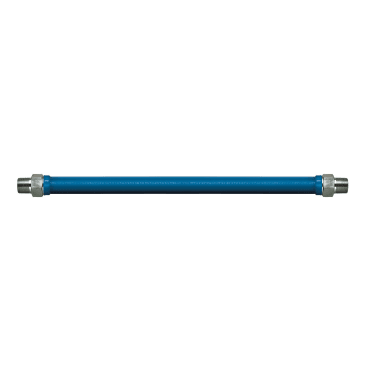

Dormont® 0241150 16100 Moveable Braided Gas Connector, 1 in Nominal, IPS x MNPT End Style, 36 in L, 304 Stainless Steel
Limited Lifetime
Moveable Commercial Kitchen Equipment, Foodservice and Commercial Applications
ANSI 169/Z21.41/Z21.69/Z223.1 | CSA 6.9/6.16 | NSF Approved | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Dormont®, 0241150, Gas Connector, Moveable Braided, Series: 16100, 1 in Nominal, IPS x MNPT End Style, 1-1/4 in OD, 36 in Length, 304 Stainless Steel, Blue, Anti-Microbial PVC Coated

This 1 inch ID, 36 inch long moveable grade gas connector is composed of 304 stainless steel corrugated tube covered with a tight weave stainless steel braid. An antimicrobial PVC coating coats the outside of the hose inhibits growth of bacteria, mold and mildew on the connector. Rotational technology fittings on both ends of the connector rotate 360 degrees, greatly reducing stress at both connector ends.

Product Details

Dormont®, 0241150, Gas Connector, Moveable Braided, Series: 16100, 1 in Nominal, IPS x MNPT End Style, 1-1/4 in OD, 36 in Length, 304 Stainless Steel, Blue, Anti-Microbial PVC Coated

This 1 inch ID, 36 inch long moveable grade gas connector is composed of 304 stainless steel corrugated tube covered with a tight weave stainless steel braid. An antimicrobial PVC coating coats the outside of the hose inhibits growth of bacteria, mold and mildew on the connector. Rotational technology fittings on both ends of the connector rotate 360 degrees, greatly reducing stress at both connector ends.

Attributes

Country Of Origin: US
Nominal Size: 1 in
Color: Blue
End Style: IPS x MNPT
Finish: Anti-Microbial PVC Coated
Length: 36 in
Material: 304 Stainless Steel
Outside Diameter: 1-1/4 in
Series: 16100
Type: Moveable Braided

Features

  • Antimicrobial PVC coating

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
