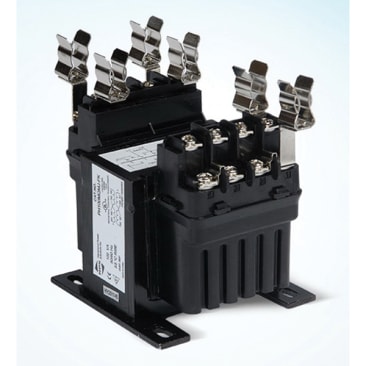

HAMMOND PWR PH100MQMJ 100VA 240/480 PR 120/240 SE CONT XFMR
Product Details
Attributes
Features
Resources
HPS Imperator™ Control Transformer, Series: PH Series, 240/480 VAC Primary, 120/240 VAC Secondary, 0.83 A, 100 VA VA Rating, 50/60 Hz, 1 ph, Foot Mount, Screw Connection Type, 130 deg C Insulation Temperature, 18 to 14 AWG Wire, Copper Winding Material, Steel, 55 deg C, 3.63 in H x 3.25 in W x 4.19 in D
The HPS Imperator™ Series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used. With 11 standard voltage groups, a VA range from 50 to 1500 VA and available with standard secondary and optional primary fuse kits, the HPS Imperator™ Series provides the perfect solution for any application. The HPS Imperator's unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32 x 1 1/2 in midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.
- Constructed with high-quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Termination combination slot/Phillips #6 screw, complete with SEMS washer (suitable for 18 to 14 AWG solid or 14 AWG stranded wire)
Product Details
HPS Imperator™ Control Transformer, Series: PH Series, 240/480 VAC Primary, 120/240 VAC Secondary, 0.83 A, 100 VA VA Rating, 50/60 Hz, 1 ph, Foot Mount, Screw Connection Type, 130 deg C Insulation Temperature, 18 to 14 AWG Wire, Copper Winding Material, Steel, 55 deg C, 3.63 in H x 3.25 in W x 4.19 in D
The HPS Imperator™ Series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used. With 11 standard voltage groups, a VA range from 50 to 1500 VA and available with standard secondary and optional primary fuse kits, the HPS Imperator™ Series provides the perfect solution for any application. The HPS Imperator's unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32 x 1 1/2 in midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.
Attributes
Features
- Constructed with high-quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Termination combination slot/Phillips #6 screw, complete with SEMS washer (suitable for 18 to 14 AWG solid or 14 AWG stranded wire)
