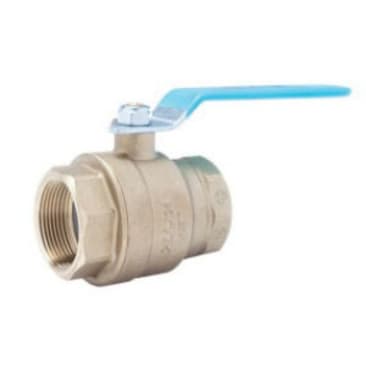

KITZ 858-012 Image 1

KITZ 054-80322 1/2 IP LF BRS 600WOG BALL VLV W/LVR 858

MFR Part #: 858-012
SKU #: 1231960
Brand: KITZ
UPC: 747066012010
KITZ 858 Series 858-012 Ball Valve, 1/2 in, FNPT, Brass, 600 psi
ASME B1.20.1 | MSS-SP-110 | NSF/ANSI 61-G/372

KITZ Ball Valve, 858 Series, 1/2 in Nominal, FNPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.08 in Inlet to Outlet Length, 1.57 in Top to Inlet Center, 0.59 in Opening, Lever Handle Operator, 22 Cv Flow Coefficient (Cv), Material Standard: ASTM B584 C89530, CDA C46750, Brass Body, PTFE Seat, Brass Stem, Carbon Steel Handle, Brass Ball, FKM/PBT Softgoods, Lead-Free, Finish: Electro-Plated Zinc

Product Details

KITZ Ball Valve, 858 Series, 1/2 in Nominal, FNPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.08 in Inlet to Outlet Length, 1.57 in Top to Inlet Center, 0.59 in Opening, Lever Handle Operator, 22 Cv Flow Coefficient (Cv), Material Standard: ASTM B584 C89530, CDA C46750, Brass Body, PTFE Seat, Brass Stem, Carbon Steel Handle, Brass Ball, FKM/PBT Softgoods, Lead-Free, Finish: Electro-Plated Zinc

Attributes

Connection Type: FNPT
Nominal Size: 1/2 in
Operator Type: Lever Handle
Pressure Rating: 600 psi
Ball Material: Brass
Body Material: Brass
Finish: Electro-Plated Zinc
Handle Material: Carbon Steel
Lead-Free/Contains Lead: Lead-Free
Media: Gas, Oil, Steam, Water
Port Type: Full
Seat Material: PTFE
Stem Material: Brass

Features

  • Maintenance-free double o-ring stem seals
  • Blowout-proof stem design
  • Plated/vented ball

Resources

Specification Sheet
