KITZ 056-40065 4 LEVER LUG BFV W/EPDM 6122EL
MFR Part #: 6122EL-400
SKU #: 1011913
Brand: KITZ
UPC: 400002478447

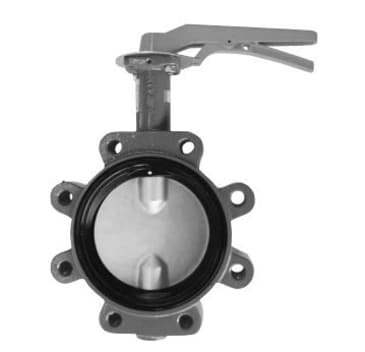

KITZ 6122EL-400 Bi-Directional Butterfly Valve, 4 in, Flanged, Ductile Iron, 200 psi
API 609 Category A Standard | MSS SP-67
Product Details
Attributes
KITZ Bi-Directional Butterfly Valve, 4 in Nominal, Flanged Connection, 200 psi, 8.94 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, 410 Stainless Steel Stem, Aluminum Bronze Disc, Aluminum Handle, EPDM/NBR Softgoods, Locking Lever Handle Operator, 671 Cv Flow Coefficient (Cv), ASTM A536, ASTM A276 Material Standard, 7.02 in Dia x 12.92 in L x 2.06 in W
Connection Type:
Flanged
Nominal Size:
4 in
Operator Type:
Locking Lever Handle
Pressure Rating:
200 psi
Body Material:
Ductile Iron
Dimensions:
7.02 in Dia x 12.92 in L x 2.06 in W
Disc Material:
Aluminum Bronze
Flow Coefficient (Cv):
671 Cv
Handle Material:
Aluminum
Material Standard:
ASTM A536, ASTM A276
Seat Material:
EPDM
Softgoods Material:
EPDM/NBR
Stem Material:
410 Stainless Steel
Top to Inlet Center:
8.94 in
Product Details
KITZ Bi-Directional Butterfly Valve, 4 in Nominal, Flanged Connection, 200 psi, 8.94 in Top to Inlet Center, Ductile Iron Body, EPDM Seat, 410 Stainless Steel Stem, Aluminum Bronze Disc, Aluminum Handle, EPDM/NBR Softgoods, Locking Lever Handle Operator, 671 Cv Flow Coefficient (Cv), ASTM A536, ASTM A276 Material Standard, 7.02 in Dia x 12.92 in L x 2.06 in W
Attributes
Connection Type: Flanged
Nominal Size: 4 in
Operator Type: Locking Lever Handle
Pressure Rating: 200 psi
Body Material: Ductile Iron
Dimensions: 7.02 in Dia x 12.92 in L x 2.06 in W
Disc Material: Aluminum Bronze
Flow Coefficient (Cv): 671 Cv
Handle Material: Aluminum
Material Standard: ASTM A536, ASTM A276
Seat Material: EPDM
Softgoods Material: EPDM/NBR
Stem Material: 410 Stainless Steel
Top to Inlet Center: 8.94 in
