RED-WHITE 5042 1/2 Image 1

RED-WHITE 004-14284 1/2 IP BALL VLV W/AUTO RELIEF 5042

MFR Part #: 5042 1/2
SKU #: 0547022
Brand: RWV®
UPC: 620689542044

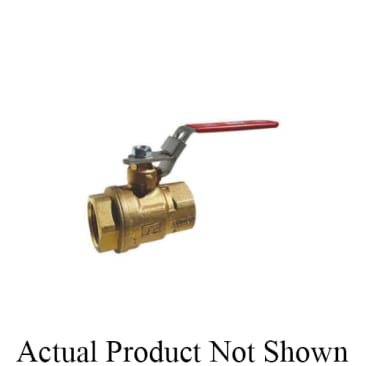

RWV® 5042 1/2 Standard Ball Valve With Handle, 1/2 in Nominal, Thread End Style, Brass Body, Full Port, PTFE Softgoods
MSS-SP-110 | B283 C37700 Body/Ball/Stem | A36 Dacroment Handle and Meet BAA Requirement

RWV® Ball Valve, Standard, Series: 5042, 1/2 in Nominal, Thread End Style, 600 lb WOG Pressure, 15 to 140 deg F, Full Port, 0.59 in Orifice, Chrome Plated Brass Ball, 2.13 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods

Product Details

RWV® Ball Valve, Standard, Series: 5042, 1/2 in Nominal, Thread End Style, 600 lb WOG Pressure, 15 to 140 deg F, Full Port, 0.59 in Orifice, Chrome Plated Brass Ball, 2.13 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods

Attributes

Ball Material: Chrome Plated Brass
Body Material: Brass
Connection Type: Thread
Inlet to Outlet Length: 2.13 in
Nominal Size: 1/2 in
Orifice Size: .59 in
Port Type: Full
Softgoods Material: PTFE
Temperature Rating: 15 to 140 deg F
Top to Inlet Center: 2.13 in
Trim Material: Brass Stem and PTFE Seat
Type: Standard

Features

  • Blow-out proof stem
  • Adjustable packing nut
  • Automatic drain hole
  • PTFE packing ring

Resources

Specification Sheet
