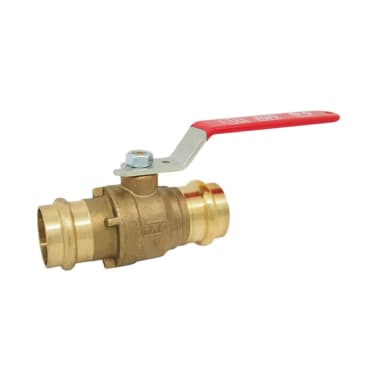

RED-WHITE 5520AB-3/4 Image 1

RED-WHITE 004-41152 5520AB 3/4 EZPRESS BALL VALVE

MFR Part #: 5520AB-3/4
SKU #: 1218856
Brand: RWV®
UPC: 670779714691
RWV® ECO-VALVE 5520AB Series 5520AB-3/4 Ball Valve, 3/4 in, Press, Brass, 250 psi
For HVAC systems, oil, compressed air or gas distribution
California AB1953 | BAA Compliant | cTLus Listed | MSS-SP-110 | NSF/ANSI 61, 372

RWV® ECO-VALVE Ball Valve, 5520AB Series, 3/4 in Nominal, Press Connection, Full Port, 2-Piece, 250 psi, Gas, Oil, Water Media, 0.73 in Orifice, 3.48 in Inlet to Outlet Length, 1.85 in Top to Inlet Center, 0.89 in Opening, Lever Handle Operator, 26 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27453, C28500, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 3.48 in L

Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.

Product Details

RWV® ECO-VALVE Ball Valve, 5520AB Series, 3/4 in Nominal, Press Connection, Full Port, 2-Piece, 250 psi, Gas, Oil, Water Media, 0.73 in Orifice, 3.48 in Inlet to Outlet Length, 1.85 in Top to Inlet Center, 0.89 in Opening, Lever Handle Operator, 26 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27453, C28500, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 3.48 in L

Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.

Attributes

Connection TypePress
Inlet to Outlet Length3.48 in
Nominal Size3/4 in
Operator TypeLever Handle
Pressure Rating250 psi
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Dimensions3.48 in L
Flow Coefficient (Cv)26 Cv
Handle MaterialSteel
Lead-Free/Contains LeadLead-Free
Material StandardASTM B927 C27453, C28500, ASTM A36
MediaGas, Oil, Water
Opening Size.89 in
Orifice Size.73 in
Port TypeFull
Seat MaterialPTFE
Series5520AB Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating15 to 160 deg F
Top to Inlet Center1.85 in
Trim MaterialBrass/PTFE

Features

  • Chrome-plated ball
  • Virgin PTFE seats
  • Double O-ring
  • Blowout-proof stem
