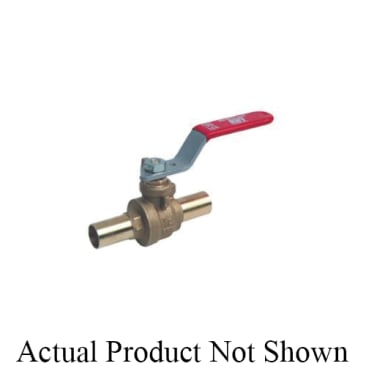

RED-WHITE 004-45015 3/4 SPGXEZPRESS BALL VLV 5023
MFR Part #: 5023 3/4
SKU #: 1040129
Brand: RWV®
UPC: 670779487052
RWV® 5023 3/4 Standard Ball Valve With Handle, 3/4 in Nominal, Male EzPress End Style, Brass Body, Full Port, PTFE Softgoods
MSS-SP-110 | UNS C35330 Body | UNS C37700 Ball/Stem and ASTM A36 Dacroment Handle
Product Details
Attributes
Features
Resources
RWV® Ball Valve, Standard, Series: 5023, 3/4 in Nominal, Male EzPress, 600 lb WOG, 300 deg F, Full Port, 0.79 in Orifice, Chrome Plated Brass Ball, 3.8 in Inlet to Outlet Length, 2.24 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods
Connection Type:
Male EzPress
Inlet to Outlet Length:
3.8 in
Nominal Size:
3/4 in
Pressure Rating:
600 lb WOG
Ball Material:
Chrome Plated Brass
Body Material:
Brass
Orifice Size:
.79 in
Port Type:
Full
Series:
5023
Softgoods Material:
PTFE
Temperature Rating:
300 deg F
Top to Inlet Center:
2.24 in
Trim Material:
Brass Stem and PTFE Seat
Type:
Standard
- Blow-out proof stem
- Adjustable packing nut
- PTFE packing ring
Product Details
RWV® Ball Valve, Standard, Series: 5023, 3/4 in Nominal, Male EzPress, 600 lb WOG, 300 deg F, Full Port, 0.79 in Orifice, Chrome Plated Brass Ball, 3.8 in Inlet to Outlet Length, 2.24 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods
Attributes
Connection Type: Male EzPress
Inlet to Outlet Length: 3.8 in
Nominal Size: 3/4 in
Pressure Rating: 600 lb WOG
Ball Material: Chrome Plated Brass
Body Material: Brass
Orifice Size: .79 in
Port Type: Full
Series: 5023
Softgoods Material: PTFE
Temperature Rating: 300 deg F
Top to Inlet Center: 2.24 in
Trim Material: Brass Stem and PTFE Seat
Type: Standard
Features
- Blow-out proof stem
- Adjustable packing nut
- PTFE packing ring
