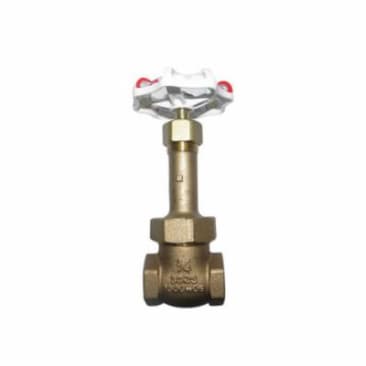

RED-WHITE 003-52815 3/4 IP GATE VLV 318A
MFR Part #: 318A 3/4
SKU #: 0542902
Brand: RWV®
UPC: 620689318052
RWV® 318A 3/4 Standard Gate Valve, 3/4 in Nominal, Thread End Style, Cast Bronze Body, Handwheel Actuator
MSS-SSP-80 | B62-C83600 Body/Disc | T#2996NA Gland Packing | B86-AG40A Handwheel
Product Details
Attributes
Features
Resources
RWV® Gate Valve, Standard, Series: 318A, 3/4 in Nominal, Thread End Style, 1000 lb WOG/300 lb WSP Pressure, Handwheel Actuator, 2.21 in Inlet to Outlet Length, 6.81 in Top to Inlet Center, Cast Bronze Body, Brass/Cast Bronze Trim, Plastic/Graphite Gland Packing Softgoods, 3.15 in Diameter Hand Wheel
Body Material:
Cast Bronze
Nominal Size:
3/4 in
Pressure Rating:
1000 lb WOG/300 lb WSP
Actuator Type:
Handwheel
End Style:
Thread
Hand Wheel Diameter:
3.15 in
Inlet to Outlet Length:
2.21 in
Series:
318A
Softgoods Material:
Plastic/Graphite Gland Packing
Top to Inlet Center:
6.81 in
Trim Material:
Brass/Cast Bronze
Type:
Standard
- Rising stem
- Union bonnet
- Solid disc
Product Details
RWV® Gate Valve, Standard, Series: 318A, 3/4 in Nominal, Thread End Style, 1000 lb WOG/300 lb WSP Pressure, Handwheel Actuator, 2.21 in Inlet to Outlet Length, 6.81 in Top to Inlet Center, Cast Bronze Body, Brass/Cast Bronze Trim, Plastic/Graphite Gland Packing Softgoods, 3.15 in Diameter Hand Wheel
Attributes
Body Material: Cast Bronze
Nominal Size: 3/4 in
Pressure Rating: 1000 lb WOG/300 lb WSP
Actuator Type: Handwheel
End Style: Thread
Hand Wheel Diameter: 3.15 in
Inlet to Outlet Length: 2.21 in
Series: 318A
Softgoods Material: Plastic/Graphite Gland Packing
Top to Inlet Center: 6.81 in
Trim Material: Brass/Cast Bronze
Type: Standard
Features
- Rising stem
- Union bonnet
- Solid disc
