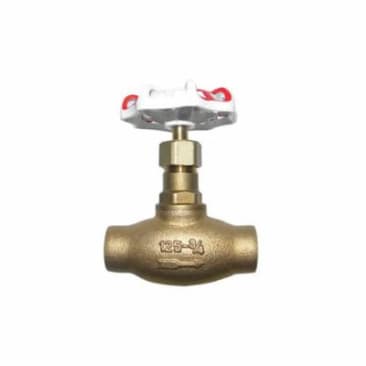

RED-WHITE 002-12100 3/4 CXC GLOBE VLV 212
MFR Part #: 212 3/4
SKU #: 0541152
Brand: RWV®
UPC: 620689212053
RWV® 212 3/4 Standard Globe Valve, 3/4 in Nominal, Solder End Style, Cast Bronze Body, Handwheel Actuator
MSS-SP-80 | B62-C83600 Body/Disc | T#2996NA Gland packing | B85-SC114A/B86-AG40A Handwheel
Product Details
Attributes
Features
Resources
RWV® Globe Valve, Standard, Series: 212, 3/4 in Nominal, Solder End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 3.35 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Cast Bronze Body, Brass Trim, Graphite Gland Packing Softgoods, 2.48 in Diameter Hand Wheel
Actuator Type:
Handwheel
End Style:
Solder
Nominal Size:
3/4 in
Body Material:
Cast Bronze
Hand Wheel Diameter:
2.48 in
Inlet to Outlet Length:
3.35 in
Pressure Rating:
200 lb WOG/125 lb WSP
Series:
212
Softgoods Material:
Graphite Gland Packing
Top to Inlet Center:
3-1/2 in
Trim Material:
Brass
Type:
Standard
- Swivel type disc
- Inserted bonnet
Product Details
RWV® Globe Valve, Standard, Series: 212, 3/4 in Nominal, Solder End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 3.35 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Cast Bronze Body, Brass Trim, Graphite Gland Packing Softgoods, 2.48 in Diameter Hand Wheel
Attributes
Actuator Type: Handwheel
End Style: Solder
Nominal Size: 3/4 in
Body Material: Cast Bronze
Hand Wheel Diameter: 2.48 in
Inlet to Outlet Length: 3.35 in
Pressure Rating: 200 lb WOG/125 lb WSP
Series: 212
Softgoods Material: Graphite Gland Packing
Top to Inlet Center: 3-1/2 in
Trim Material: Brass
Type: Standard
Features
- Swivel type disc
- Inserted bonnet
