GIBSON WATERWORKS 76100Q 3/4IN COMP BRASS CURB STOP
MFR Part #: 5182-031
SKU #: 1108233
Brand: A.Y. McDonald
UPC: 400007031562

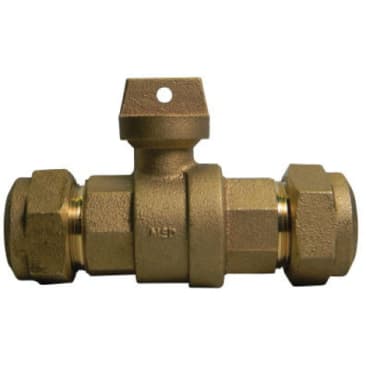

Mc.Donald® 5182-031 Curb Stop Ball Valve, 3/4 in, Compression, Brass, 300 psig
ANSI/AWWA C800 Specified | NSF/ANSI 61, 372 Certified
Product Details
Attributes
Features
Resources
Mc.Donald® Curb Stop Ball Valve, 3/4 in Nominal, Compression Connection, 300 psig, Water Media, 2.44 in Top to Inlet Center, 3/4 in Opening, Material Standard: ASTM B584 C89833, Brass Body, EPDM Seal, Brass Ball, Lead-Free, 3/4 in Dia
Ball Material:
Brass
Body Material:
Brass
Connection Type:
Compression
Dimensions:
3/4 in Dia
Lead-Free/Contains Lead:
Lead-Free
Material Standard:
ASTM B584 C89833
Media:
Water
Nominal Size:
3/4 in
Opening Size:
3/4 in
Pressure Rating:
300 psig
Seal Material:
EPDM
Top to Inlet Center:
2.44 in
- Blowout-proof EPDM port seals
- End piece joint sealed with an EPDM O-ring and thread locker
- Insert stiffeners required on all flexible plastic connections
Product Details
Mc.Donald® Curb Stop Ball Valve, 3/4 in Nominal, Compression Connection, 300 psig, Water Media, 2.44 in Top to Inlet Center, 3/4 in Opening, Material Standard: ASTM B584 C89833, Brass Body, EPDM Seal, Brass Ball, Lead-Free, 3/4 in Dia
Attributes
Ball Material: Brass
Body Material: Brass
Connection Type: Compression
Dimensions: 3/4 in Dia
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM B584 C89833
Media: Water
Nominal Size: 3/4 in
Opening Size: 3/4 in
Pressure Rating: 300 psig
Seal Material: EPDM
Top to Inlet Center: 2.44 in
Features
- Blowout-proof EPDM port seals
- End piece joint sealed with an EPDM O-ring and thread locker
- Insert stiffeners required on all flexible plastic connections
