WINTERS PFQ712ZR Image 1

WINTERS PFQ712ZR DRY 4 X 1/4 BTM 0-160 PSI/KPA STBLZR

MFR Part #: PFQ712ZR
SKU #: 1224196
Brand: WINTERS
UPC: 628311313741

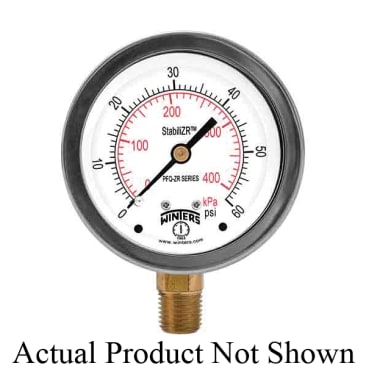

WINTERS StabiliZR™ PFQ712ZR Dual Scale Pressure Gauge, 0 to 160 psi Pressure, 1/4 in NPT Connection, 4 in Dia Dial, +/-1.5 % Accuracy
5 years
Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors Applications
ASME B40.100 | CRN Registerd | PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WINTERS StabiliZR™ Pressure Gauge, Dual Scale, 0 to 160 psi Pressure, 1/4 in NPT Connection, 4 in Diameter Dial, +/-1.5 % Accuracy, Dial Display, -40 to 200 deg F, Bottom Mounting, 304 Stainless Steel

Product Details

WINTERS StabiliZR™ Pressure Gauge, Dual Scale, 0 to 160 psi Pressure, 1/4 in NPT Connection, 4 in Diameter Dial, +/-1.5 % Accuracy, Dial Display, -40 to 200 deg F, Bottom Mounting, 304 Stainless Steel

Attributes

Accuracy: +/-1.5 %
Connection Size: 1/4 in NPT
Dial Diameter: 4 in
Material: 304 Stainless Steel
Mounting Type: Bottom
Pressure Range: 0 to 160 psi
Series: PFQ-ZR Series
Temperature Rating: -40 to 200 deg F
Type: Dual Scale
Display Type: Dial

Features

  • StabiliZR™ dampened movement minimizes effects of pulsation and vibration without liquid filling
  • Restricted orifice standard on dual scale
  • Crimp-on bezel
  • Brass internals
  • U-Clamps and front flanges for panel mounting

Resources

Line Drawing
Specification Sheet
