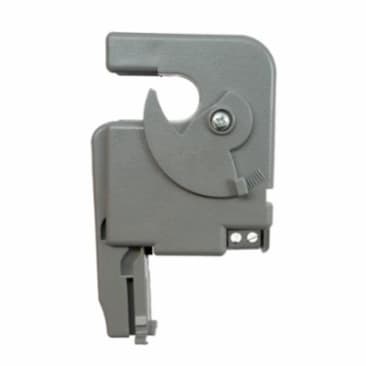

FUNCTIONAL DEVICES RIBXGHTF SPLIT CORE TERMINAL CT DONUT
MFR Part #: RIBXGHTF
SKU #: 1136504
Brand: Functional Devices™
UPC: 771578465531
Functional Devices™ RIBXGHTF Enclosed Self-Powered Split Core Current Sensor, 0.50 to 150 A, 600 V AC
Limited
cUL Listed | UL Listed
Product Details
Attributes
Features
Resources
Functional Devices™ Current Sensor, Enclosed Self-Powered Split Core, Series: RIBXGH, 0.50 to 150 A Sensing Range, 600 V AC, 1 A, -30 to 140 deg F Operating
Amperage Rating:1 A
Country Of Origin:US
Operating Temperature:-30 to 140 deg F
Sensing Range:0.50 to 150 A
Series:RIBXGH
Type:Enclosed Self-Powered Split Core
Voltage Rating:600 V AC
- 5 to 95% (noncondensing) humidity range
- Removable mounting tab provided
- The wire clamp locks against the wire being monitored, securing the unit in place
- Fixed, 0.50 A threshold
- Solid state switch SPST sensor contact type
- 120 VAC switching voltage range
- Terminal strip, accepts 14 to 22 AWG wire sensor contact termination
- Current below threshold open sensor contact output
- Current above threshold closed sensor contact output
Product Details
Functional Devices™ Current Sensor, Enclosed Self-Powered Split Core, Series: RIBXGH, 0.50 to 150 A Sensing Range, 600 V AC, 1 A, -30 to 140 deg F Operating
Attributes
Amperage Rating: 1 A
Country Of Origin: US
Operating Temperature: -30 to 140 deg F
Sensing Range: 0.50 to 150 A
Series: RIBXGH
Type: Enclosed Self-Powered Split Core
Voltage Rating: 600 V AC
Features
- 5 to 95% (noncondensing) humidity range
- Removable mounting tab provided
- The wire clamp locks against the wire being monitored, securing the unit in place
- Fixed, 0.50 A threshold
- Solid state switch SPST sensor contact type
- 120 VAC switching voltage range
- Terminal strip, accepts 14 to 22 AWG wire sensor contact termination
- Current below threshold open sensor contact output
- Current above threshold closed sensor contact output
