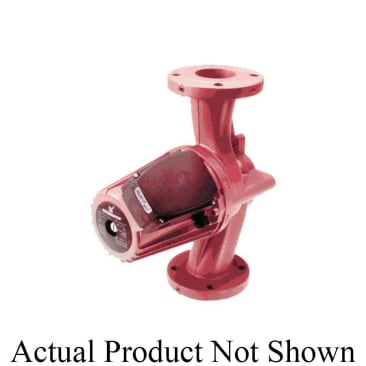

GRUNDFOS 96654373 3/4HP 115V 1PH CI CIRC PUMP UPS53-55/57F
Product Details
Attributes
Features
Resources
Grundfos, 96654373, Circulator Pump, Series: UPS, 62.1 gpm Flow Rate, 55/57 dm Maximum Head, 630 W Power, 115 VAC, 5.8 to 5.85 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, 32 to 104 deg F Ambient, X4D Enclosure, 326 mm W x 302 mm H Dimensions
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible.
- Pump is characterized by single speed motor
- Ceramic radial bearings
- Carbon axial bearing
- Stainless steel rotor can, bearing plate and rotor cladding
- Aluminum alloy stator housing
- Cast iron pump housing
- Stator with built-in thermal switch
Product Details
Grundfos, 96654373, Circulator Pump, Series: UPS, 62.1 gpm Flow Rate, 55/57 dm Maximum Head, 630 W Power, 115 VAC, 5.8 to 5.85 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, 32 to 104 deg F Ambient, X4D Enclosure, 326 mm W x 302 mm H Dimensions
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible.
Attributes
Features
- Pump is characterized by single speed motor
- Ceramic radial bearings
- Carbon axial bearing
- Stainless steel rotor can, bearing plate and rotor cladding
- Aluminum alloy stator housing
- Cast iron pump housing
- Stator with built-in thermal switch
