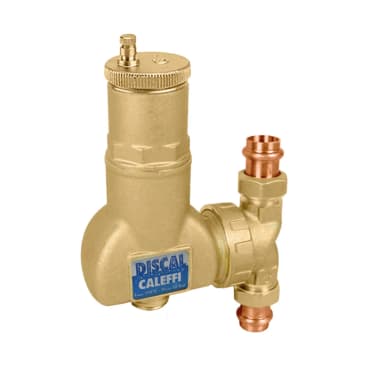

CALEFFI 551765A 3/4PRESS UNION DISCAL ROTATING CLR AIR SEP
MFR Part #: 551765A
SKU #: 1181630
Brand: Caleffi
UPC: 8016615588156
Caleffi 551765A 5517 Air Seperator, 3/4 in Nominal, Press Connection, 150 psi Working, 6 gpm Flow Rate, 32 to 250 deg F, Brass
Product Details
Attributes
Features
Resources
Caleffi, 551765A, Air Seperator, Series: 5517, 3/4 in Nominal, Press Connection, 150 psi Working, 32 to 250 deg F, Suitable Media: Water/Glycol Solution, 6 gpm Flow Rate, 50 % Maximum Percentage of Glycol, 5 um Particle Separation, Brass, 9-3/4 in H x 5-3/8 in L Dimensions
Connection Type:Press
Dimensions:9-3/4 in H x 5-3/8 in L
Flow Rate:6 gpm
Material:Brass
Maximum Percentage of Glycol:50 %
Nominal Size:3/4 in
Series:5517
Suitable Media:Water/Glycol Solution
Temperature Rating:32 to 250 deg F
Working Pressure:150 psi
Particle Separation Capacity:5 um
- The air discharge capacity is very high
- They automatically remove all the air present in the system down to micro-bubble level with low head loss due to the special internal shape of the separator body
- Flow direction of the DISCAL air separator is bidirectional; flow in either direction is permitted
- The circulation of fully de-aerated water enables the equipment to operate under optimum conditions, free from noise, corrosion, localized or mechanical damage
- Micro-bubbles, fusing with each other, increase in volume (get larger) until they become large enough to rise to the top where they are automatically released
Product Details
Caleffi, 551765A, Air Seperator, Series: 5517, 3/4 in Nominal, Press Connection, 150 psi Working, 32 to 250 deg F, Suitable Media: Water/Glycol Solution, 6 gpm Flow Rate, 50 % Maximum Percentage of Glycol, 5 um Particle Separation, Brass, 9-3/4 in H x 5-3/8 in L Dimensions
Attributes
Connection Type: Press
Dimensions: 9-3/4 in H x 5-3/8 in L
Flow Rate: 6 gpm
Material: Brass
Maximum Percentage of Glycol: 50 %
Nominal Size: 3/4 in
Series: 5517
Suitable Media: Water/Glycol Solution
Temperature Rating: 32 to 250 deg F
Working Pressure: 150 psi
Particle Separation Capacity: 5 um
Features
- The air discharge capacity is very high
- They automatically remove all the air present in the system down to micro-bubble level with low head loss due to the special internal shape of the separator body
- Flow direction of the DISCAL air separator is bidirectional; flow in either direction is permitted
- The circulation of fully de-aerated water enables the equipment to operate under optimum conditions, free from noise, corrosion, localized or mechanical damage
- Micro-bubbles, fusing with each other, increase in volume (get larger) until they become large enough to rise to the top where they are automatically released
