LITTLE GIANT 520125 20S-CIM
MFR Part #: 520125
SKU #: 1153788
Brand: Little Giant®
UPC: 010121201255

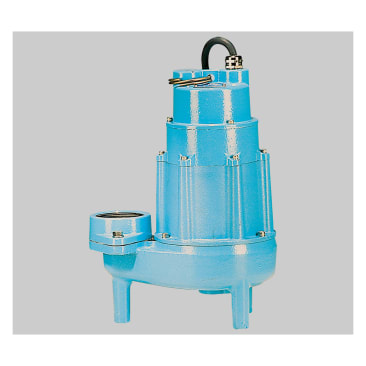

Little Giant® 520125 20S Sewage Pump, 2 hp, 200 to 208 V AC, 3 in FNPT Outlet, 14.5 A, 3 ph
3 Years
Cast Iron Permanent Split Capacitor Motor
Dewatering, Sewage and Effluent Wastewater Transfer
cCSAus Certified
Product Details
Attributes
Features
Resources
Little Giant® Sewage Pump, Series: 20S, 205 gpm, 3 in FNPT Outlet, 77 ft Maximum Head, 2 hp, 200 to 208 V AC, 14.5 A, 60 Hz Frequency, 3 ph, 33.3 psi Maximum, SOW 14/4 AWG 20 ft Cord, Red Brass Vortex Impeller, 140 deg F, Upper and Lower Ball Bearing, 13 in L x 8.4 in W x 18.4 in H Dimensions, Import
Country Of Origin:Mexico
Horsepower:2 hp
Maximum Head:77 ft
Outlet Size:3 in FNPT
Voltage Rating:200 to 208 V AC
Amperage Rating:14.5 A
Bearing Type:Upper and Lower Ball
Cord Type:SOW 14/4 AWG 20 ft
Dimensions:13 in L x 8.4 in W x 18.4 in H
Domestic/Import:Import
Flow Rate:205 gpm
Frequency Rating:60 Hz
Impeller Type:Red Brass Vortex
Maximum Pressure:33.3 psi
Phase:3
Series:20S
Temperature Rating:140 deg F
- Designed for continuous operation
- Capacitor and power cord connections are isolated from oil filled motor housing for ease of field maintenance
- Handles solids up to 2 in Dia
- Manual operation
Product Details
Little Giant® Sewage Pump, Series: 20S, 205 gpm, 3 in FNPT Outlet, 77 ft Maximum Head, 2 hp, 200 to 208 V AC, 14.5 A, 60 Hz Frequency, 3 ph, 33.3 psi Maximum, SOW 14/4 AWG 20 ft Cord, Red Brass Vortex Impeller, 140 deg F, Upper and Lower Ball Bearing, 13 in L x 8.4 in W x 18.4 in H Dimensions, Import
Attributes
Country Of Origin: Mexico
Horsepower: 2 hp
Maximum Head: 77 ft
Outlet Size: 3 in FNPT
Voltage Rating: 200 to 208 V AC
Amperage Rating: 14.5 A
Bearing Type: Upper and Lower Ball
Cord Type: SOW 14/4 AWG 20 ft
Dimensions: 13 in L x 8.4 in W x 18.4 in H
Domestic/Import: Import
Flow Rate: 205 gpm
Frequency Rating: 60 Hz
Impeller Type: Red Brass Vortex
Maximum Pressure: 33.3 psi
Phase: 3
Series: 20S
Temperature Rating: 140 deg F
Features
- Designed for continuous operation
- Capacitor and power cord connections are isolated from oil filled motor housing for ease of field maintenance
- Handles solids up to 2 in Dia
- Manual operation
