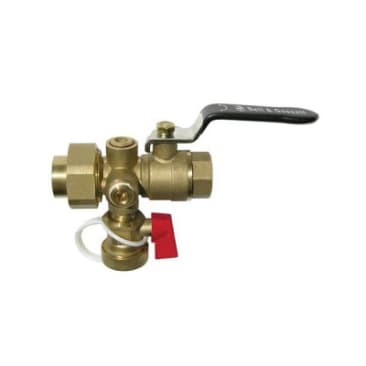

B&G 113227 1/2FF TANK PURGE VALVE
Product Details
Attributes
Features
Resources
Bell & Gossett Tank Purge Valve, 1/2 in Nominal, FNPT, 400 psig, -4 to 250 deg F, Full Port, Media: Non-Potable Water, 3.56 in Inlet to Outlet Length, Brass Body, EPDM/PTFE, 1.6 in D
The Bell & Gossett tank purge valve (TPV) is a combination full port ball type isolation valve and drain valve used to connect the system to the expansion tank. This valve allows the tank to be drained for easy servicing or tank replacement without having to drain the system. Available in various NPT/sweat connections from 1/2, 3/4, 1, 1-1/4, 1-1/2 and 2 in sizes, these valves are furnished standard with a drain valve with a 5/8 in hose connection. These valves can be used on all series "B" and "D" tanks and are not recommended to be used on potable water tanks.
- EPDM O-ring/PTFE ball seal
Product Details
Bell & Gossett Tank Purge Valve, 1/2 in Nominal, FNPT, 400 psig, -4 to 250 deg F, Full Port, Media: Non-Potable Water, 3.56 in Inlet to Outlet Length, Brass Body, EPDM/PTFE, 1.6 in D
The Bell & Gossett tank purge valve (TPV) is a combination full port ball type isolation valve and drain valve used to connect the system to the expansion tank. This valve allows the tank to be drained for easy servicing or tank replacement without having to drain the system. Available in various NPT/sweat connections from 1/2, 3/4, 1, 1-1/4, 1-1/2 and 2 in sizes, these valves are furnished standard with a drain valve with a 5/8 in hose connection. These valves can be used on all series "B" and "D" tanks and are not recommended to be used on potable water tanks.
Attributes
Features
- EPDM O-ring/PTFE ball seal
