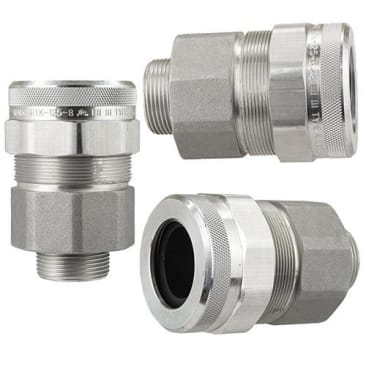

TECHSPAN RTK-050-4 Image 1
AD Rewards

TECHSPAN RTK-050-4 TECK CONNECTION 1/2IN CABLE .860-.985

MFR Part #: RTK-050-4
SKU #: 1158945
Brand: Techspan®
UPC: 77685613564
Please note this item is discontinued (order fulfillment will depend on stock availability): Techspan® Tuff Seal™ RTK-050-4 Standard Teck Cord Connector, 1/2 in Trade, 0.86 to 0.985 in Cable Openings, Aluminum
Indoor and Outdoor
UL Listed | CSA Certified | RoHS Compliant

Techspan® Tuff-Seal™ Teck Cord Connector, Standard, Series: RTK, 1/2 in Trade, 0.86 to 0.985 in Cable Openings, AC Cable, NPT, Aluminum, -40 to 300 deg F, 2.1 in L

Tuff seal Teck cable connectors are designed to form a watertight seal around the jacketed armored cable and at the enclosure entry for control centers, panel boards, junction boxes and motor control & electrical distribution equipment. Rated Nema 4 and IP 65, these connectors are available in aluminum, nickel plated aluminum and stainless steel in 1/2 to 4 in NPT sizes for the utmost flexibility in accommodating a wide variety of applications and cable.

Product Details

Techspan® Tuff-Seal™ Teck Cord Connector, Standard, Series: RTK, 1/2 in Trade, 0.86 to 0.985 in Cable Openings, AC Cable, NPT, Aluminum, -40 to 300 deg F, 2.1 in L

Tuff seal Teck cable connectors are designed to form a watertight seal around the jacketed armored cable and at the enclosure entry for control centers, panel boards, junction boxes and motor control & electrical distribution equipment. Rated Nema 4 and IP 65, these connectors are available in aluminum, nickel plated aluminum and stainless steel in 1/2 to 4 in NPT sizes for the utmost flexibility in accommodating a wide variety of applications and cable.

Attributes

Cable Openings: 0.86 to 0.985 in
Cable Type: AC
Clearance Items: Clearance
Connection Type: NPT
Dimensions: 2.1 in L
Material: Aluminum
Rewards: AD Rewards
Series: RTK
Temperature Rating: -40 to 300 deg F
Trade Size: 1/2 in
Type: Standard

Features

  • Unique PowR-Lock™ grounding seal for superior conductivity
  • One piece design that is smaller in profile and width than similar connectors for easier installation in tight spaces
  • Neoprene bushing provides superior pull out and sealing protection
  • No disassembly resulting in fast and simple installations
  • Meets UL standards for raintight metal clad cable fitting
  • Combination tightening surface
  • Embedded viton o ring
  • Rated Nema 4 and IP 65
  • 0.75 to 0.905 Dia over armor
