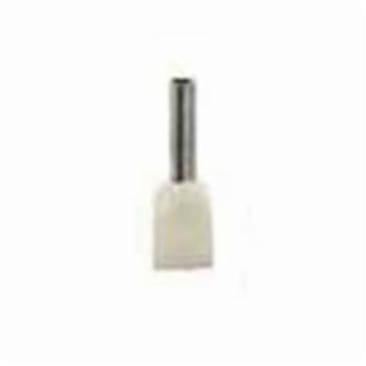

TECHSPAN FER-22-8D FERRULE 22GA 8MM WHITE F/RAT-FER
MFR Part #: FER-22-8D
SKU #: 1083205
Brand: Techspan®
UPC: 77685610988
Techspan® FER-22-8D Single Insulated Wire Ferrule, 22 AWG Stranded Copper Conductor, 14 mm L, Polypropylene, White
For termination of stranded wires
cCSAUS | CE Certified | RoHS Compliant
Product Details
Attributes
Features
Resources
Techspan® Wire Ferrule, Single Insulated, Stranded Copper Conductor, 22 AWG Conductor, 14 mm Length, 8 mm L x 1 mm W x 0.15 mm THK Barrel, 600 V AC, 50 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, White
Barrel Size:8 mm L x 1 mm W x 0.15 mm THK
Color:White
Conductor Size:22 AWG
Conductor Type:Stranded Copper
Country Of Origin:Taiwan
Finish:Electro Tin Plated
Length:14 mm
Material:Polypropylene
Rewards:AD Rewards
Specifications:50 sq-mm
Temperature Rating:105 deg C
Type:Single Insulated
Voltage Rating:600 V AC
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 2.6 mm W x 0.25 mm thick tongue
Product Details
Techspan® Wire Ferrule, Single Insulated, Stranded Copper Conductor, 22 AWG Conductor, 14 mm Length, 8 mm L x 1 mm W x 0.15 mm THK Barrel, 600 V AC, 50 sq-mm, 105 deg C, Polypropylene, Electro Tin Plated, White
Attributes
Barrel Size: 8 mm L x 1 mm W x 0.15 mm THK
Color: White
Conductor Size: 22 AWG
Conductor Type: Stranded Copper
Country Of Origin: Taiwan
Finish: Electro Tin Plated
Length: 14 mm
Material: Polypropylene
Rewards: AD Rewards
Specifications: 50 sq-mm
Temperature Rating: 105 deg C
Type: Single Insulated
Voltage Rating: 600 V AC
Features
- Ferrules are a convenient device used for termination of stranded wires
- Ferrules eliminate the risk of fraying single strands and consequential accidental contacts and short circuits
- They also protect the wire from damage when using compression screw, spring, or split-bolt type connectors
- Insertion funnel is made of polypropylene and is heat resistant up to 105 deg C
- Minimum coating thickness 3 micro meter
- 2.6 mm W x 0.25 mm thick tongue
