ELECTROSONIC G2R-1-S-DC24S OMRON SPDT RELAY 10AMP 24VDC COIL
MFR Part #: G2R-1-SDC24(S)
SKU #: 1085238
Brand: OMRON
UPC: 757120404149

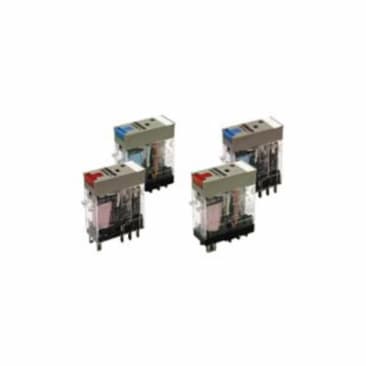

OMRON G2R-1-SDC24(S) G2RS General Purpose Relay With Nameplate, 10 A, 5 Pin, 1 Form C SPDT Contact, 24 V DC V Coil
For use with control panel
UL 508 File No. E41643 | CSA 22.2 No.0, 14, File No. LR31928 | RoHS Compliant
Product Details
Attributes
Features
OMRON General Purpose Relay, Series: G2RS, 10 A, 300 W, 50/60 Hz, 24 V DC Coil, 1 Form C SPDT, 10 A at 250 VAC/30 VDC Contact, 5 Pins, Square Base, 1 Poles, Socket Mount, Push-In Terminal, -40 to 70 deg C, 35.5 mm L x 13 mm W x 29 mm H
Amperage Rating:10 A
Base Type:Square
Coil Voltage:24 V DC
Contact Form:1 Form C SPDT
Contact Rating:10 A at 250 V AC/30 V DC
Country Of Origin:China
Dimensions:35.5 mm L x 13 mm W x 29 mm H
Frequency Rating:50/60 Hz
Mounting Type:Socket
Number of Pins:5
Number of Poles:1
Power Rating:300 W
Series:G2RS
Temperature Rating:-40 to 70 deg C
Terminal Type:Push-In
- Slim and space-saving power plug-in relay
- Reduces wiring work by 60% when combined with the P2RF-[]-PU push-in plus socket
- Built-in mechanical operation indicator
- AC type is equipped with a coil-disconnection self-diagnostic function (LED type)
- High switching power
Product Details
OMRON General Purpose Relay, Series: G2RS, 10 A, 300 W, 50/60 Hz, 24 V DC Coil, 1 Form C SPDT, 10 A at 250 VAC/30 VDC Contact, 5 Pins, Square Base, 1 Poles, Socket Mount, Push-In Terminal, -40 to 70 deg C, 35.5 mm L x 13 mm W x 29 mm H
Attributes
Amperage Rating: 10 A
Base Type: Square
Coil Voltage: 24 V DC
Contact Form: 1 Form C SPDT
Contact Rating: 10 A at 250 V AC/30 V DC
Country Of Origin: China
Dimensions: 35.5 mm L x 13 mm W x 29 mm H
Frequency Rating: 50/60 Hz
Mounting Type: Socket
Number of Pins: 5
Number of Poles: 1
Power Rating: 300 W
Series: G2RS
Temperature Rating: -40 to 70 deg C
Terminal Type: Push-In
Features
- Slim and space-saving power plug-in relay
- Reduces wiring work by 60% when combined with the P2RF-[]-PU push-in plus socket
- Built-in mechanical operation indicator
- AC type is equipped with a coil-disconnection self-diagnostic function (LED type)
- High switching power
