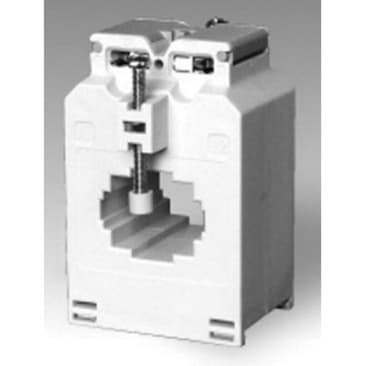

CARLO GAVAZZI CTD2X4005AXXX Image 1

CARLO GAVAZZI CTD2X4005AXXX SOLID CORE CT 4005

MFR Part #: CTD2X4005AXXX
SKU #: 1160756
Brand: Carlo Gavazzi
UPC: 400006769237
Carlo Gavazzi CTD CTD2X4005AXXX AC Current Transformer, 720 VAC Primary, 6.5 VA, IP00, IP20 Enclosure
CE Marked | CSA Certified | cURus Listed | EN61869-2 Standard

Carlo Gavazzi AC Current Transformer, Model: CTD, 720 VAC Primary, 400 A, 6.5 VA VA Rating, 45 to 65 Hz, DIN Rail, Panel Mount, Screw Connection Type, 75 deg C Insulation Temperature, IP00, IP20, 3 kV Insulation Voltage, ABS, -13 to 140 deg F, 56 mm L x 42 mm W x 104.5 mm H

Cable/Bus-bar type current transformer with DIN-rail/busbar and panel mounting facility, rated primary currents from 50 to 300 A.

Product Details

Carlo Gavazzi AC Current Transformer, Model: CTD, 720 VAC Primary, 400 A, 6.5 VA VA Rating, 45 to 65 Hz, DIN Rail, Panel Mount, Screw Connection Type, 75 deg C Insulation Temperature, IP00, IP20, 3 kV Insulation Voltage, ABS, -13 to 140 deg F, 56 mm L x 42 mm W x 104.5 mm H

Cable/Bus-bar type current transformer with DIN-rail/busbar and panel mounting facility, rated primary currents from 50 to 300 A.

Attributes

Amperage Rating: 400 A
Connection Type: Screw
Dimensions: 56 mm L x 42 mm W x 104.5 mm H
Enclosure Type: IP00, IP20
Frequency Rating: 45 to 65 Hz
Insulation Temperature: 75 deg C
Insulation Voltage: 3 kV
Material: ABS
Model: CTD
Mounting Type: DIN Rail, Panel
Primary Voltage: 720 VAC
Temperature Rating: -13 to 140 deg F
VA Rating: 6.5 VA

Features

  • Bus-bar type current transformer
  • <=5 (class: 0.5, 1 and 3) security factor
  • Integrated DIN-rail mounting holder
  • Removable panel fixing clips
  • (2) cable/bus-bar isolated fixing screw
  • Double screw terminals (up to 8-wire connections)
  • Sealable terminal block covers
