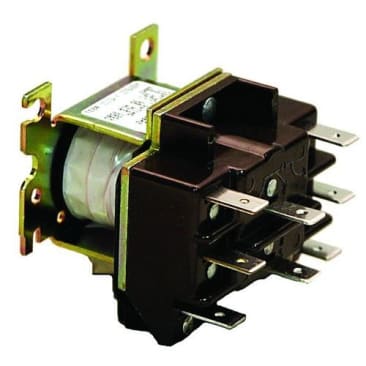

ALLTEMP 25-90340 24V DPDT HEAVY DUTY ENCLOSED FAN RELAY
MFR Part #: 25-90340
SKU #: 1286621
Brand: Alltemp
UPC: 400051784254
MORRIS 25-90340 Switch Relay, 15 A, 24 V V Coil
Intended for many applications in air-conditioning, refrigeration, heating and general purpose switching
UL Listed|cUR Listed
Product Details
Attributes
Features
Resources
MORRIS, 25-90340, Switch Relay, 15 A, 50, 60 Hz Frequency, 24 V Coil, 2 Pole, Universal Mounting, 1/4 in Quick-Connect Terminal, -40 to 130 deg F
Amperage Rating:15 A
Coil Voltage:24 V
Frequency Rating:50, 60 Hz
Mounting Type:Universal
Number of Poles:2
Temperature Rating:-40 to 130 deg F
Terminal Type:1/4 in Quick-Connect
- Intended for many applications in air-conditioning, refrigeration, heating and general purpose switching
- Replaces Honeywell, WhiteRodgers/RBM and Mars
- Semi-enclosed compact design
- Quiet and reliable operations
- Universal mounting bracket
- Molded terminal numbers and circuit diagram on top of relay
- 2 Pole DT mode
- 83/14 V
- 41/7 V
- 15 Coil Resistance
- 334 Coil MA
- 21.5 In Rush VA
- 3/4 HP
- -40 deg F - 130 deg F (-40 deg C -50 deg C) Temperature Range
- Electrical Life 100,000 operations
- Coil Insulation Class B
- Coil Duty Cycle Continous
- 1/4 in quick-connects Terminals
- Contact Material Silver Cadmium Oxide
- General Purpose Switching Relays allows a small electric current to turn on or off a larger electric current
Product Details
MORRIS, 25-90340, Switch Relay, 15 A, 50, 60 Hz Frequency, 24 V Coil, 2 Pole, Universal Mounting, 1/4 in Quick-Connect Terminal, -40 to 130 deg F
Attributes
Amperage Rating: 15 A
Coil Voltage: 24 V
Frequency Rating: 50, 60 Hz
Mounting Type: Universal
Number of Poles: 2
Temperature Rating: -40 to 130 deg F
Terminal Type: 1/4 in Quick-Connect
Features
- Intended for many applications in air-conditioning, refrigeration, heating and general purpose switching
- Replaces Honeywell, WhiteRodgers/RBM and Mars
- Semi-enclosed compact design
- Quiet and reliable operations
- Universal mounting bracket
- Molded terminal numbers and circuit diagram on top of relay
- 2 Pole DT mode
- 83/14 V
- 41/7 V
- 15 Coil Resistance
- 334 Coil MA
- 21.5 In Rush VA
- 3/4 HP
- -40 deg F - 130 deg F (-40 deg C -50 deg C) Temperature Range
- Electrical Life 100,000 operations
- Coil Insulation Class B
- Coil Duty Cycle Continous
- 1/4 in quick-connects Terminals
- Contact Material Silver Cadmium Oxide
- General Purpose Switching Relays allows a small electric current to turn on or off a larger electric current
