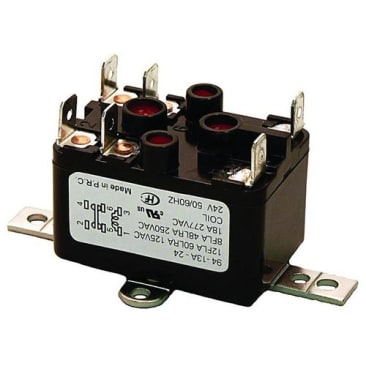

ALLTEMP 25-90380 24V SPN0-SPNC HEAVY DUTY ENCLOSED FAN RELAY
MFR Part #: 25-90380
SKU #: 1286623
Brand: Alltemp
UPC: 400051784278
MORRIS 25-90380 Heavy Duty Relay, 18 A, 24 V V Coil
cURus Listed
Product Details
Attributes
Features
Resources
MORRIS, 25-90380, Relay, Heavy Duty, 18 A, 50, 60 Hz Frequency, 24 V Coil, Universal Mounting, 1/4 in Quick-Connect Terminal, -4 to 104 deg F
Amperage Rating:
18 A
Coil Voltage:
24 V
Frequency Rating:
50, 60 Hz
Mounting Type:
Universal
Temperature Rating:
-4 to 104 deg F
Terminal Type:
1/4 in Quick-Connect
Type:
Heavy Duty
- Designed for cooling, heating or general purpose switching equipment operating heavier loads
- Replace WR/Essex/RBM and Mars
- Type 184 Models
- 167 Coil NOM MA
- 77 Coil resistance
- Totally enclosed compact design
- Quiet and reliable operations
- Universal mounting bracket
- Break away tabs
- Enclosure Phenolic
- -4 deg F - 104 deg F (-20 deg C - 40 deg C) Temperature Range
- Mechanical Life 1,000,000 operations
- Electrical Life 100,000 operations (at 18amp 277VAC Res)
- Release Time (typical) 25ms at nominal coil voltage
- Dielectric Strength (at sea level for 1 min)
- 2500 Vrms coil to contact
- 1000 Vrms between open contacts
- 50/60 Hz Coil Frequency
- Coil Insulation Class A (105 deg C/221 deg F)
- Heavy Duty Relays 25A SPST-NO+NC
Product Details
MORRIS, 25-90380, Relay, Heavy Duty, 18 A, 50, 60 Hz Frequency, 24 V Coil, Universal Mounting, 1/4 in Quick-Connect Terminal, -4 to 104 deg F
Attributes
Amperage Rating: 18 A
Coil Voltage: 24 V
Frequency Rating: 50, 60 Hz
Mounting Type: Universal
Temperature Rating: -4 to 104 deg F
Terminal Type: 1/4 in Quick-Connect
Type: Heavy Duty
Features
- Designed for cooling, heating or general purpose switching equipment operating heavier loads
- Replace WR/Essex/RBM and Mars
- Type 184 Models
- 167 Coil NOM MA
- 77 Coil resistance
- Totally enclosed compact design
- Quiet and reliable operations
- Universal mounting bracket
- Break away tabs
- Enclosure Phenolic
- -4 deg F - 104 deg F (-20 deg C - 40 deg C) Temperature Range
- Mechanical Life 1,000,000 operations
- Electrical Life 100,000 operations (at 18amp 277VAC Res)
- Release Time (typical) 25ms at nominal coil voltage
- Dielectric Strength (at sea level for 1 min)
- 2500 Vrms coil to contact
- 1000 Vrms between open contacts
- 50/60 Hz Coil Frequency
- Coil Insulation Class A (105 deg C/221 deg F)
- Heavy Duty Relays 25A SPST-NO+NC
