WATTS 0702315 0 408-RW 3 OSY GATE VALVE UL/FM

MFR Part #: 0702315
SKU #: 0464772
Brand: WATTS®
UPC: 098268089141

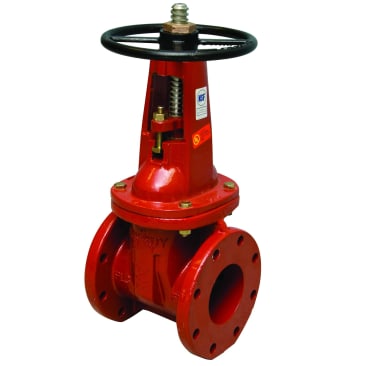

WATTS® 0702315 408 Gate Valve, 3 in Nominal, Flanged End Style, Cast Iron Body, Handwheel Actuator
Limited
Fire Protection
ANSI B16.10 | ASTM A126 Class B/B584 CDA 8454/B36 CDA 26D/B584 CDA 862/A307/A563/B21 | AWWA Compliant | FM Appoved | MSS-SP-70 conform | UL Listed | ULC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

WATTS®, 0702315, Gate Valve, Series: 408, 3 in Nominal, Flanged End Style, 200 psi Pressure, 140 deg F, Full Port, Handwheel Actuator, 8 in Inlet to Outlet Length, 18-7/8 in Top to Inlet Center, Cast Iron Body, Buna-N Trim, 10 in Diameter Hand Wheel

This OSY flanged gate valve, Watts 3 IN model 408-OSY-RW, is used in fire protection applications in fire main shutoff applications. It features an epoxy coated cast iron body with flanged connections, resilient wedge disc, and cast iron handwheel. It is UL/FM listed and complies with MSS-SP-70. The maximum pressure is 250 psi (17 bar) CWP.

Product Details

WATTS®, 0702315, Gate Valve, Series: 408, 3 in Nominal, Flanged End Style, 200 psi Pressure, 140 deg F, Full Port, Handwheel Actuator, 8 in Inlet to Outlet Length, 18-7/8 in Top to Inlet Center, Cast Iron Body, Buna-N Trim, 10 in Diameter Hand Wheel

This OSY flanged gate valve, Watts 3 IN model 408-OSY-RW, is used in fire protection applications in fire main shutoff applications. It features an epoxy coated cast iron body with flanged connections, resilient wedge disc, and cast iron handwheel. It is UL/FM listed and complies with MSS-SP-70. The maximum pressure is 250 psi (17 bar) CWP.

Attributes

Country Of Origin: US
Pressure Rating: 200 psi
Actuator Type: Handwheel
End Style: Flanged
Hand Wheel Diameter: 10 in
Inlet to Outlet Length: 8 in
Series: 408
Trim Material: Buna-N

Features

  • Fusion bonded coating, internal and external
  • Easy in-line service
  • Replaceable disc
  • Boss tapped and plugged
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Resilient wedge disc
  • Flanged connections
