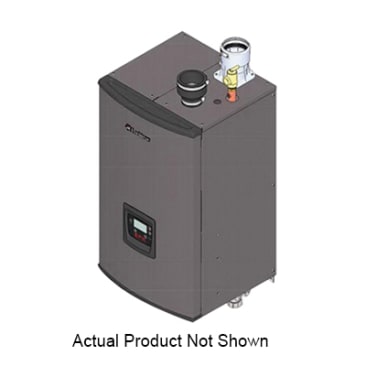

LOCHINVAR EPC199N EPC FRE TBE CNDSNG CMBI BOILER 199000 BTU

Name: LOCHINVAR EPC199N EPC FRE TBE CNDSNG CMBI BOILER 199000 BTU
Brand: Lochinvar®
SKU: 1207250
Availability: OutOfStock

MFR Part #: EPC199N

SKU #: 1207250

Brand: Lochinvar®

UPC: 937056

Lochinvar® EPC199N Combination Fire Tube Gas Boiler, 95 % AFUE, 199000 Btu/hr BTU, 120 VAC, 1 ph Phase, Stainless Steel

10 Year Limited

For residential

AHRI Certified | ASME Specified | CSA Certified | ENERGY STAR® Certified

Product Details
Attributes
Features
Resources

Lochinvar® Combination Fire Tube Gas Boiler, 120 VAC, 60 Hz Frequency, 1 ph, 95 % AFUE, 199000 Btu/hr BTU, 8.2 to 10.6 gpm Flow Rate, 50 psi Pressure, 1 in Water, 1/2 in Gas, 3 in Air Inlet Connection, Natural Gas Fuel, Horizontal Direct, Vertical Vent, Low Nox, Modulating Burner, Chimney/Breeching/Vent Size: 3 in, 185 MBtu/hr DOE Heating, Direct Spark Ignition, Net BTU Rating: 161 MBtu/hr, 161 MBtu/hr Net IBR, Wall Mounting, Stainless Steel, 77 deg F, Dimensions: 18-3/4 in L x 18 in W x 32-1/2 in H

Product Details

Lochinvar® Combination Fire Tube Gas Boiler, 120 VAC, 60 Hz Frequency, 1 ph, 95 % AFUE, 199000 Btu/hr BTU, 8.2 to 10.6 gpm Flow Rate, 50 psi Pressure, 1 in Water, 1/2 in Gas, 3 in Air Inlet Connection, Natural Gas Fuel, Horizontal Direct, Vertical Vent, Low Nox, Modulating Burner, Chimney/Breeching/Vent Size: 3 in, 185 MBtu/hr DOE Heating, Direct Spark Ignition, Net BTU Rating: 161 MBtu/hr, 161 MBtu/hr Net IBR, Wall Mounting, Stainless Steel, 77 deg F, Dimensions: 18-3/4 in L x 18 in W x 32-1/2 in H

Attributes

AFUE Rating: 95 %

BTU Rating: 199000 Btu/hr

Burner Type: Low Nox, Modulating

Chimney/Breeching/Vent Size: 3 in

Connection Type: 1 in Water, 1/2 in Gas, 3 in Air Inlet

Dimensions: 18-3/4 in L x 18 in W x 32-1/2 in H

DOE Heating Capacity: 185 MBtu/hr

Flow Rate: 8.2 to 10.6 gpm

Frequency Rating: 60 Hz

Fuel Type: Natural Gas

Ignition Type: Direct Spark

Material: Stainless Steel

Mounting Type: Wall

Net BTU Rating: 161 MBtu/hr

Net IBR Rating: 161 MBtu/hr

Phase: 1 ph

Pressure Rating: 50 psi

Temperature Rating: 77 deg F

Vent Type: Horizontal Direct, Vertical

Voltage Rating: 120 VAC

Features

Smart control digital operating control LCD display with words not codes
Outdoor reset control with outdoor air sensor
Programmable system efficiency optimizers DHW response time, DHW pre-heat and outdoor air reset curve
2-pump control system pump and boiler pump
Low voltage terminal strip air handler interlock, flow switch contacts, Low water cutoff connection, system sensor contacts outdoor air sensor contacts and cascade contacts
Time clock for data logging last 10 lockouts
Low water flow safety control and indication
Password security
Built-in cascading sequencer for up to 8 units

Resources

Instruction/Installation Manual
